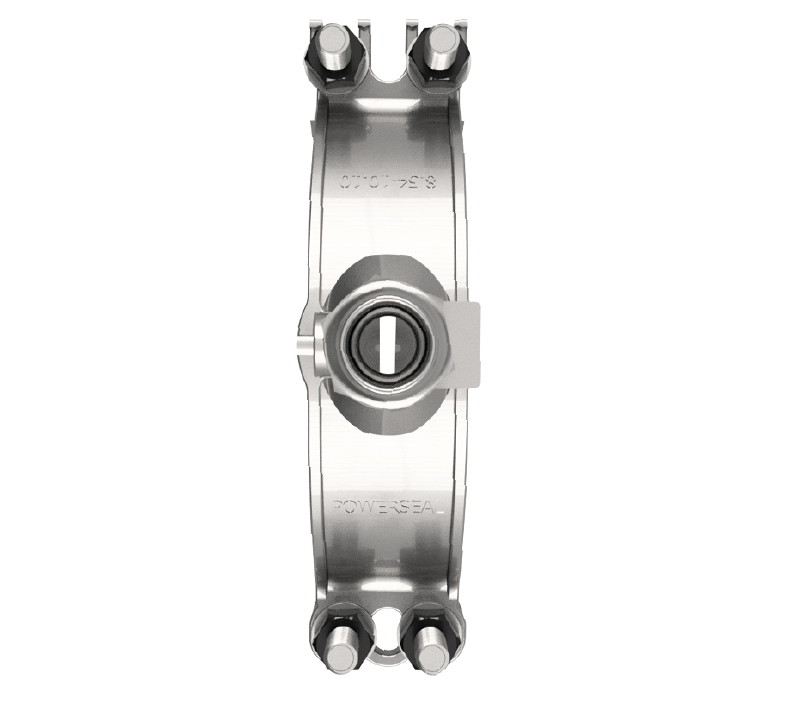

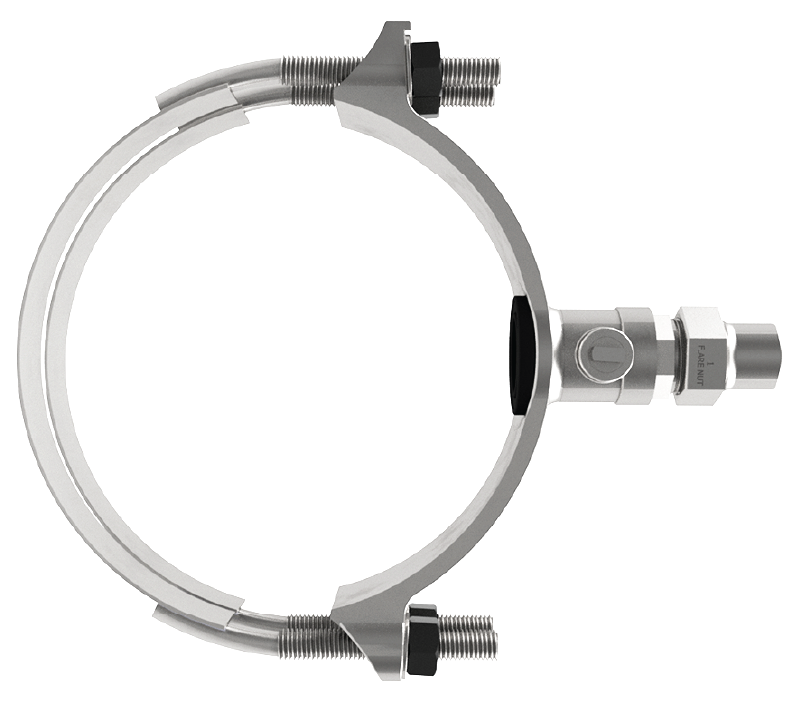

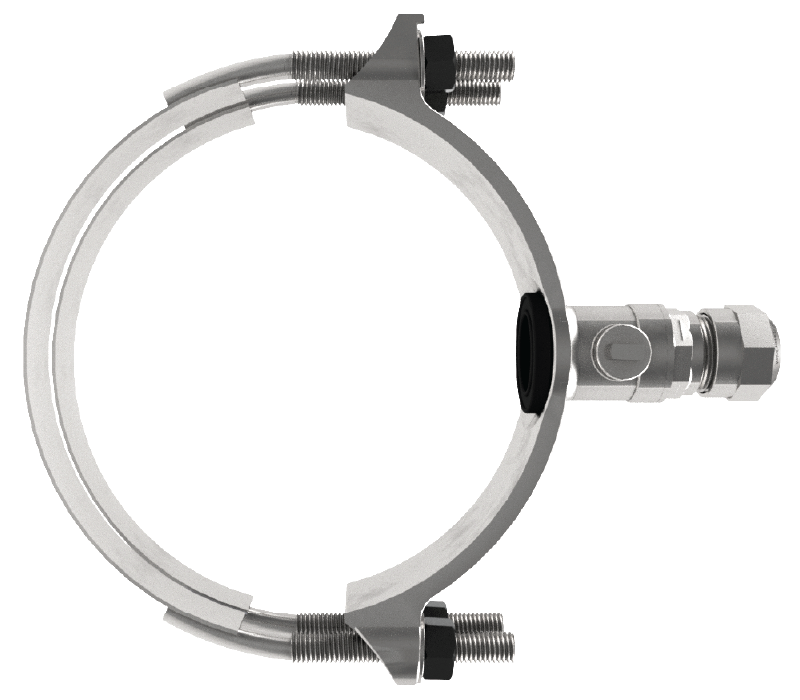

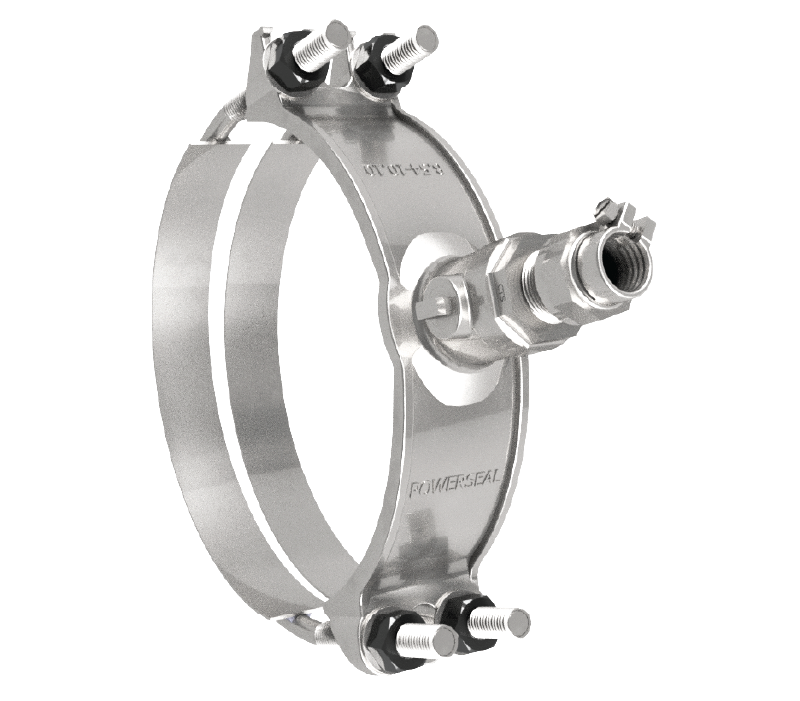

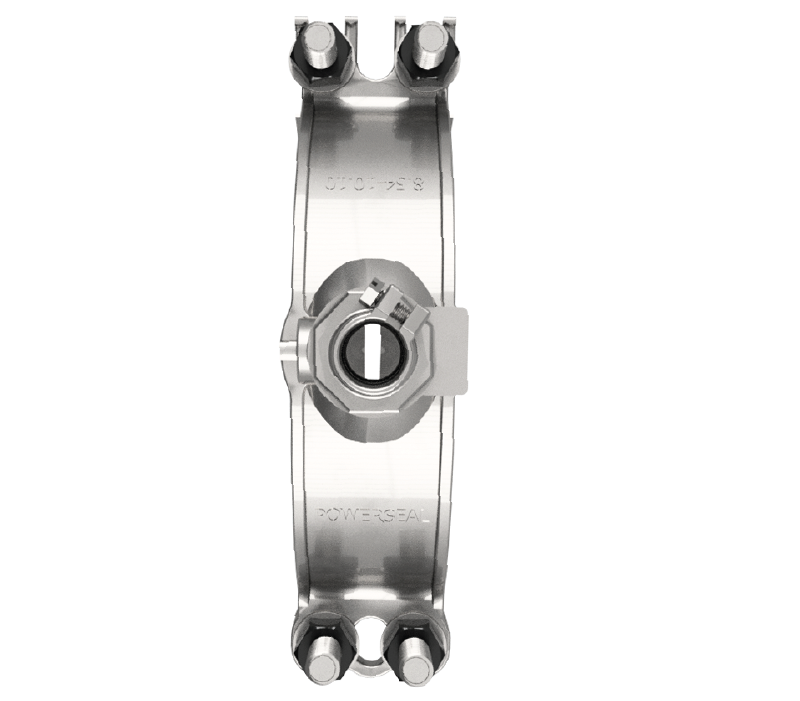

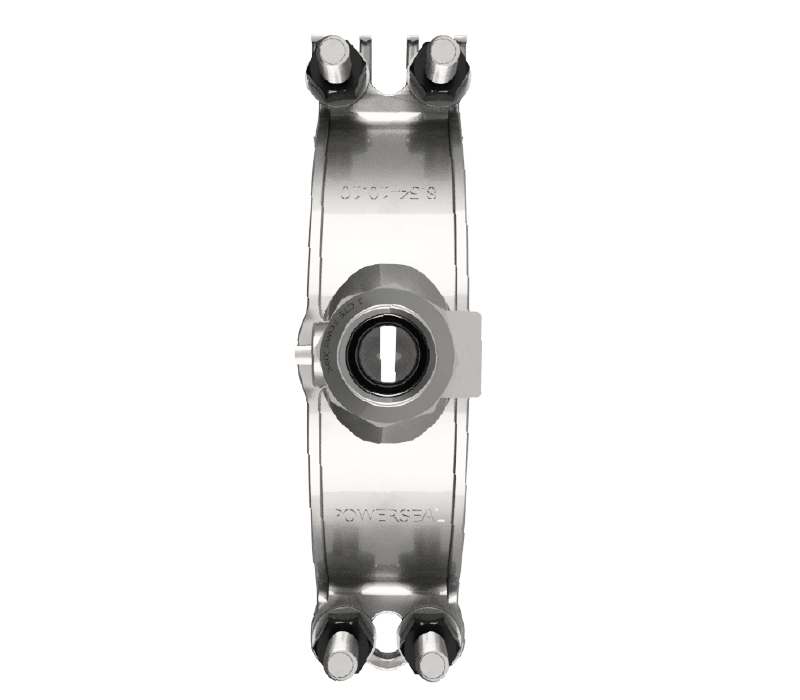

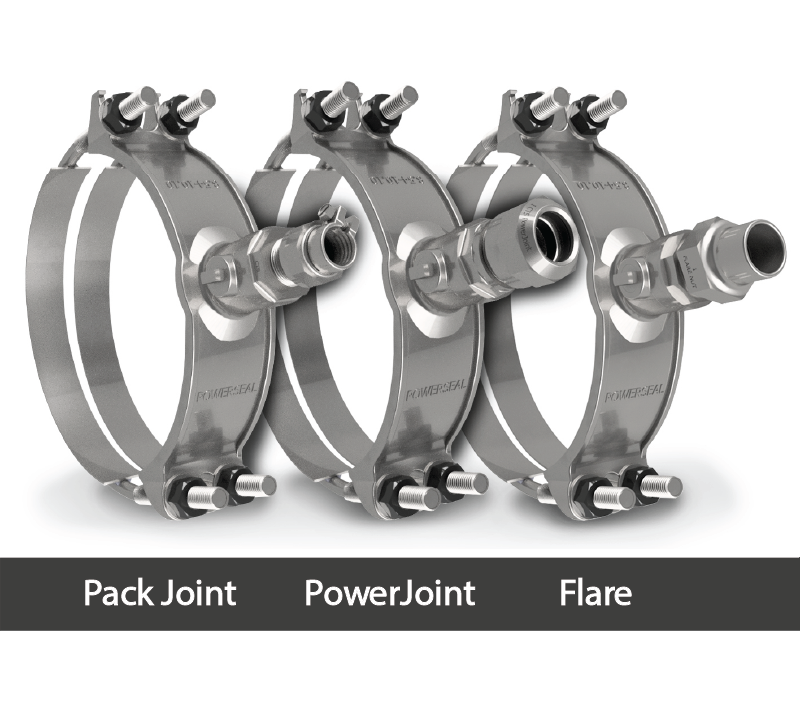

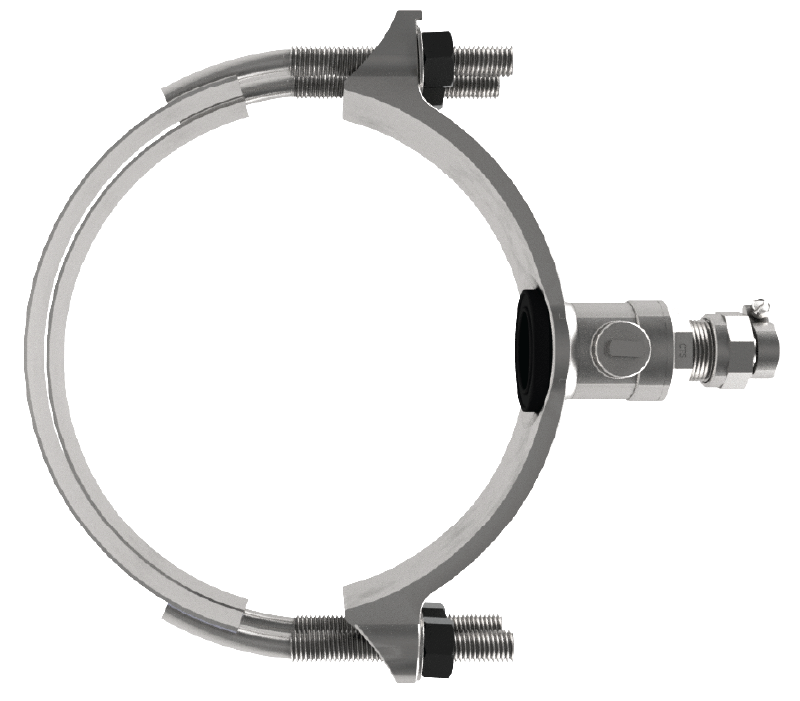

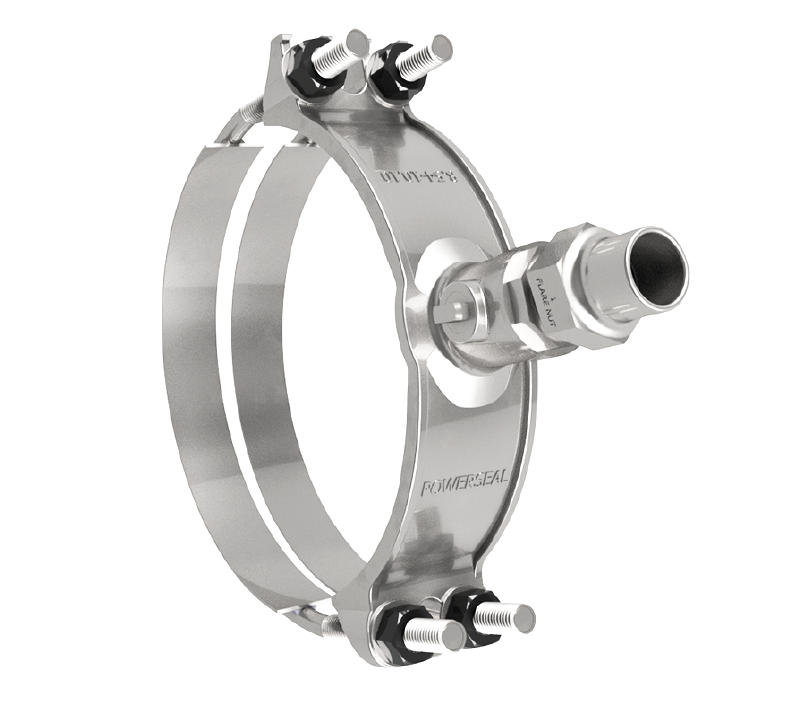

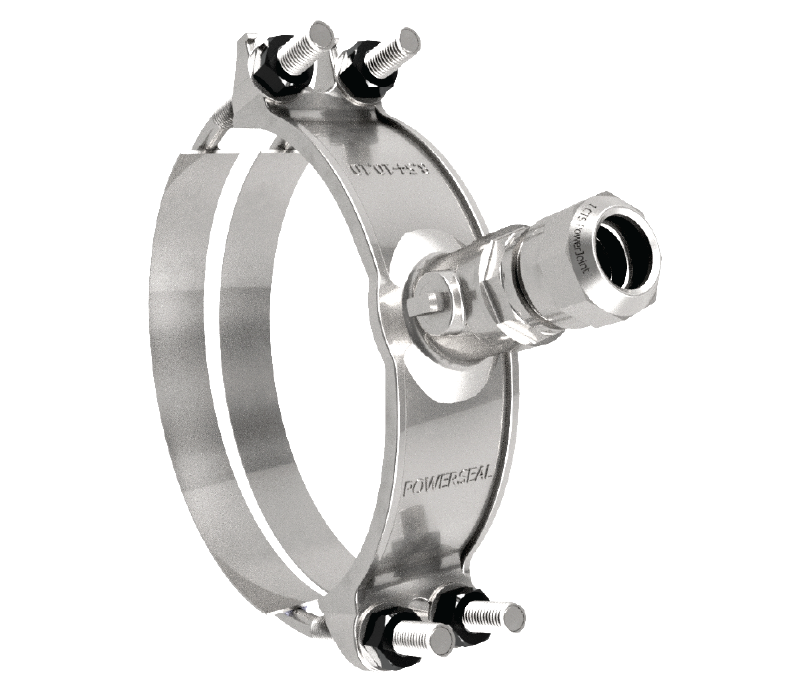

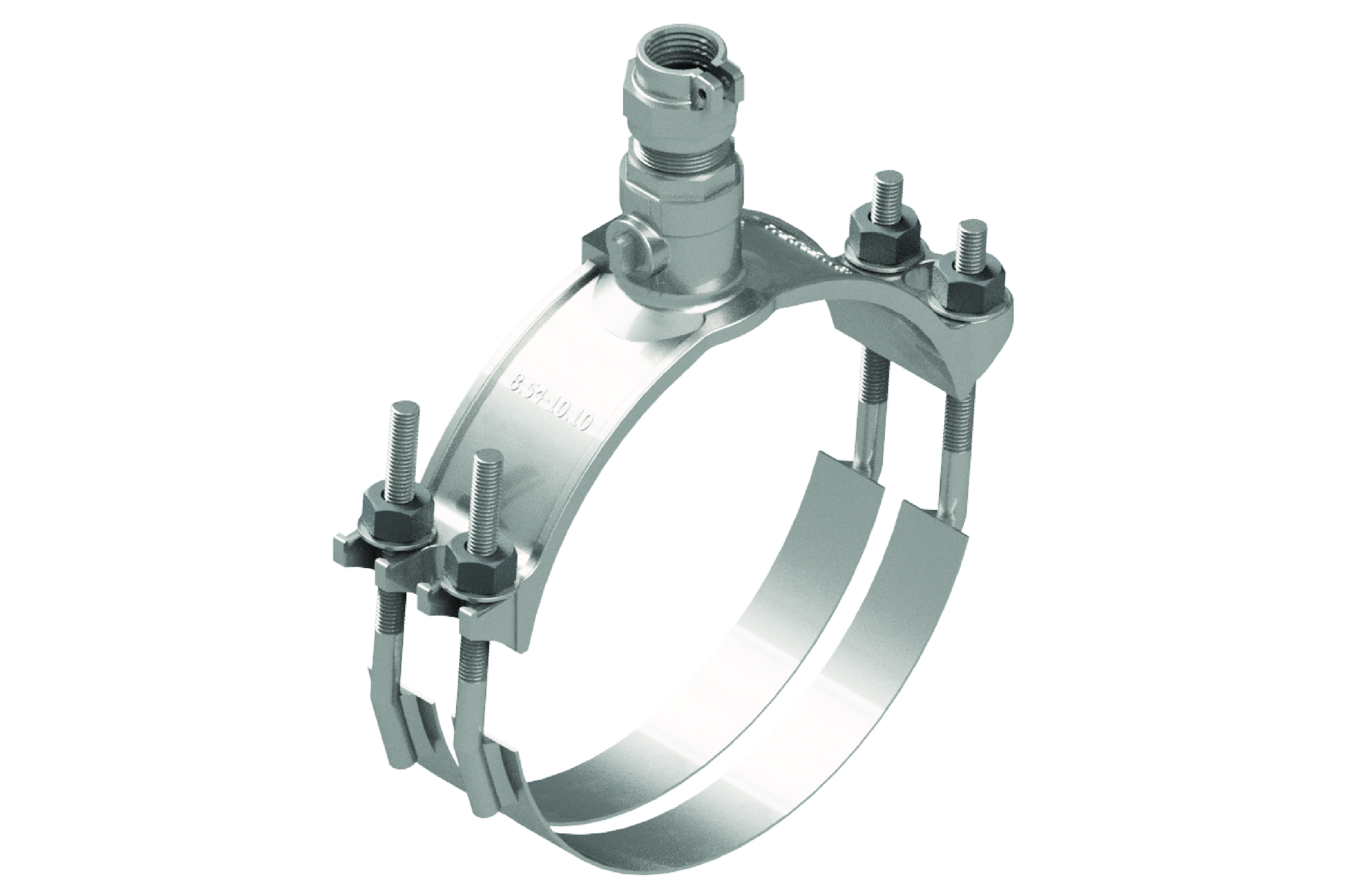

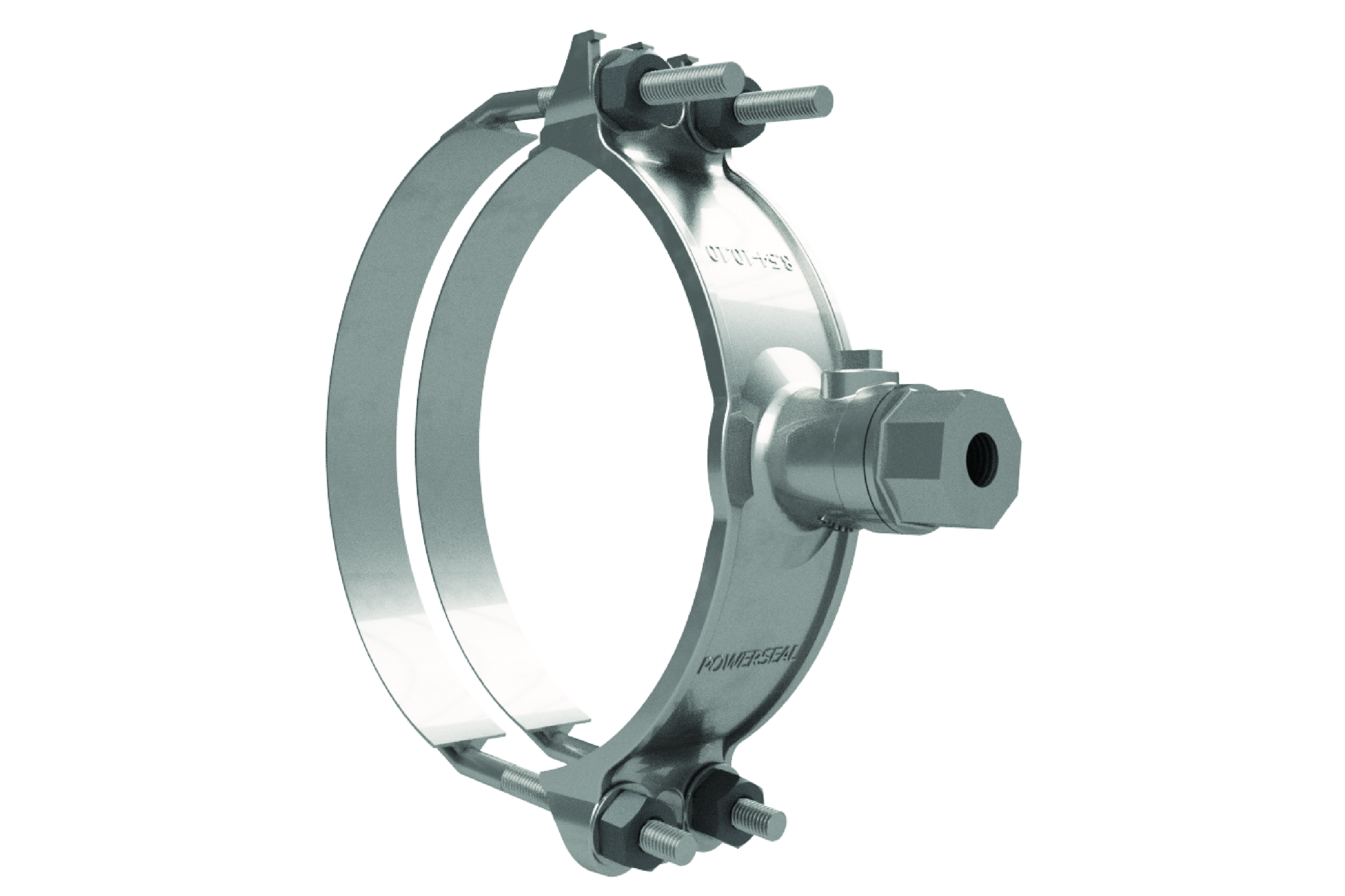

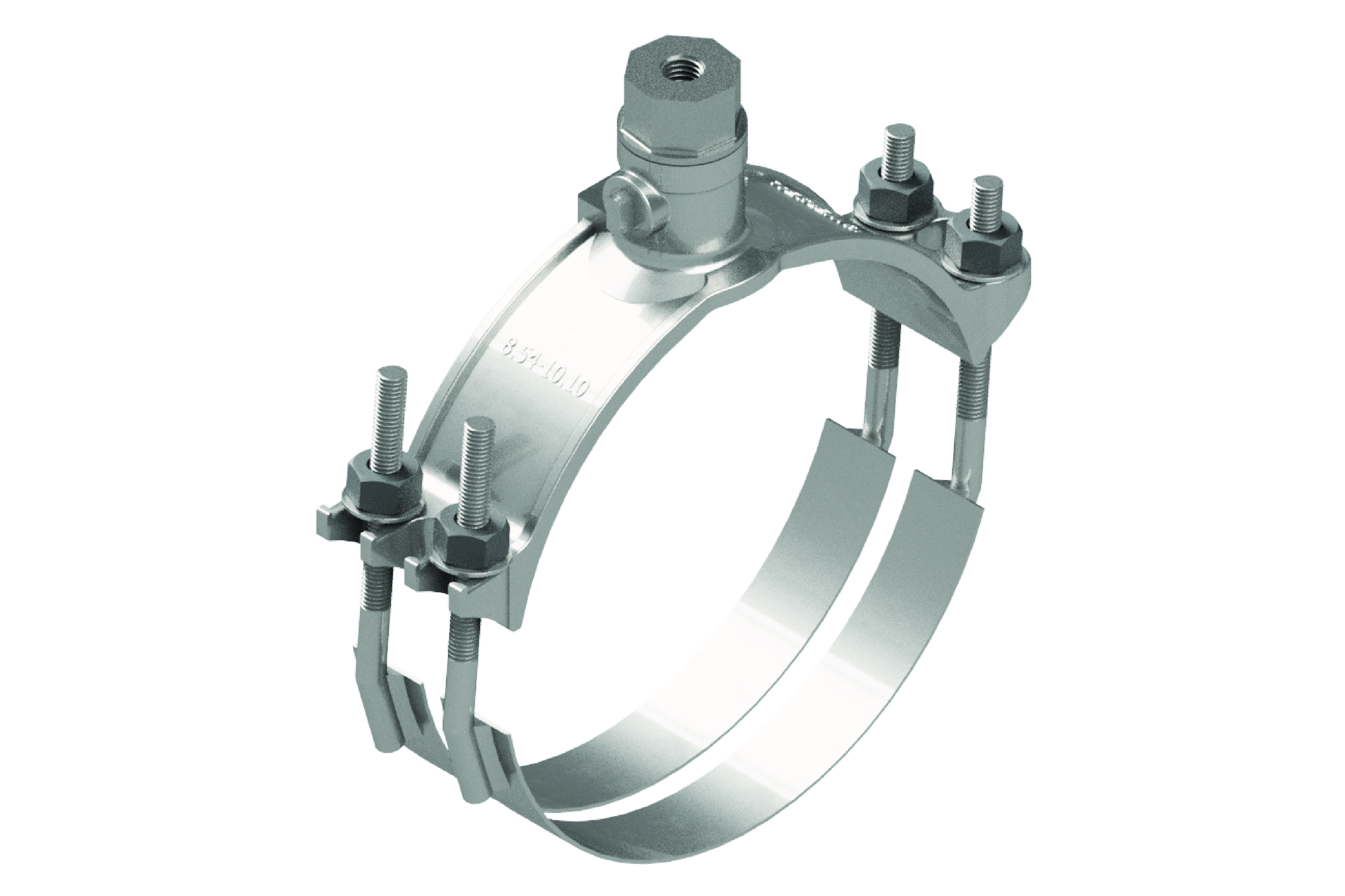

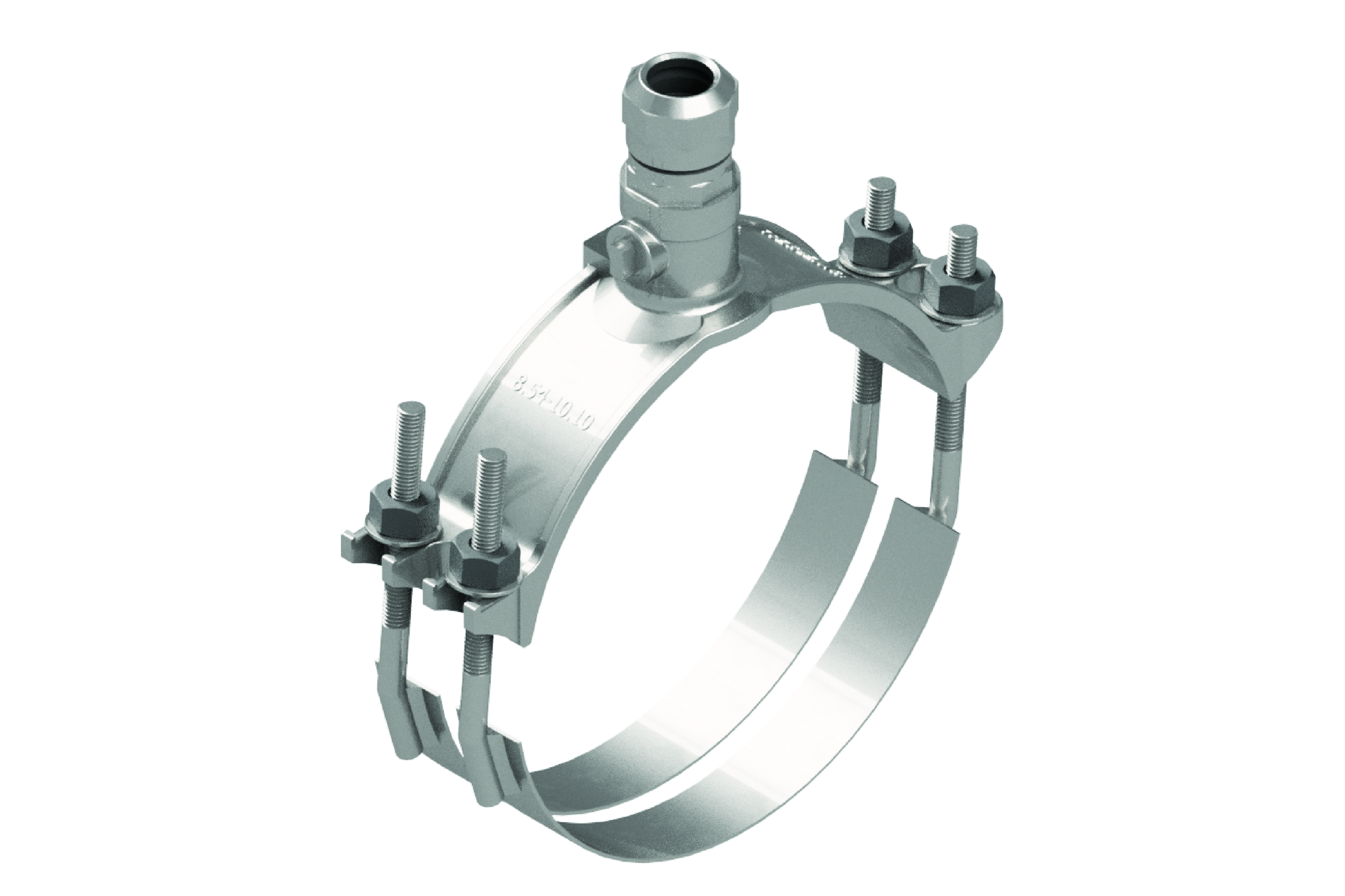

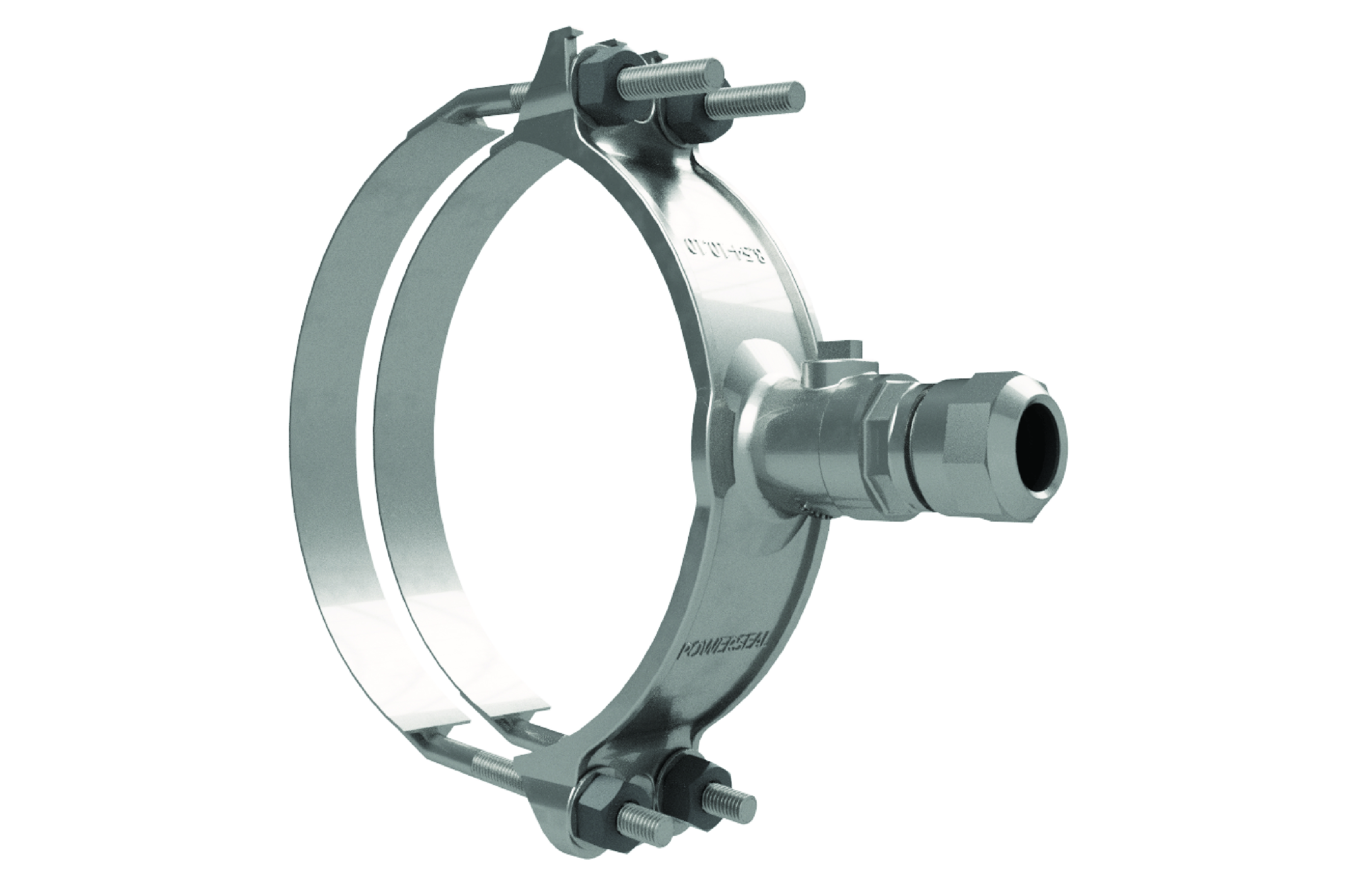

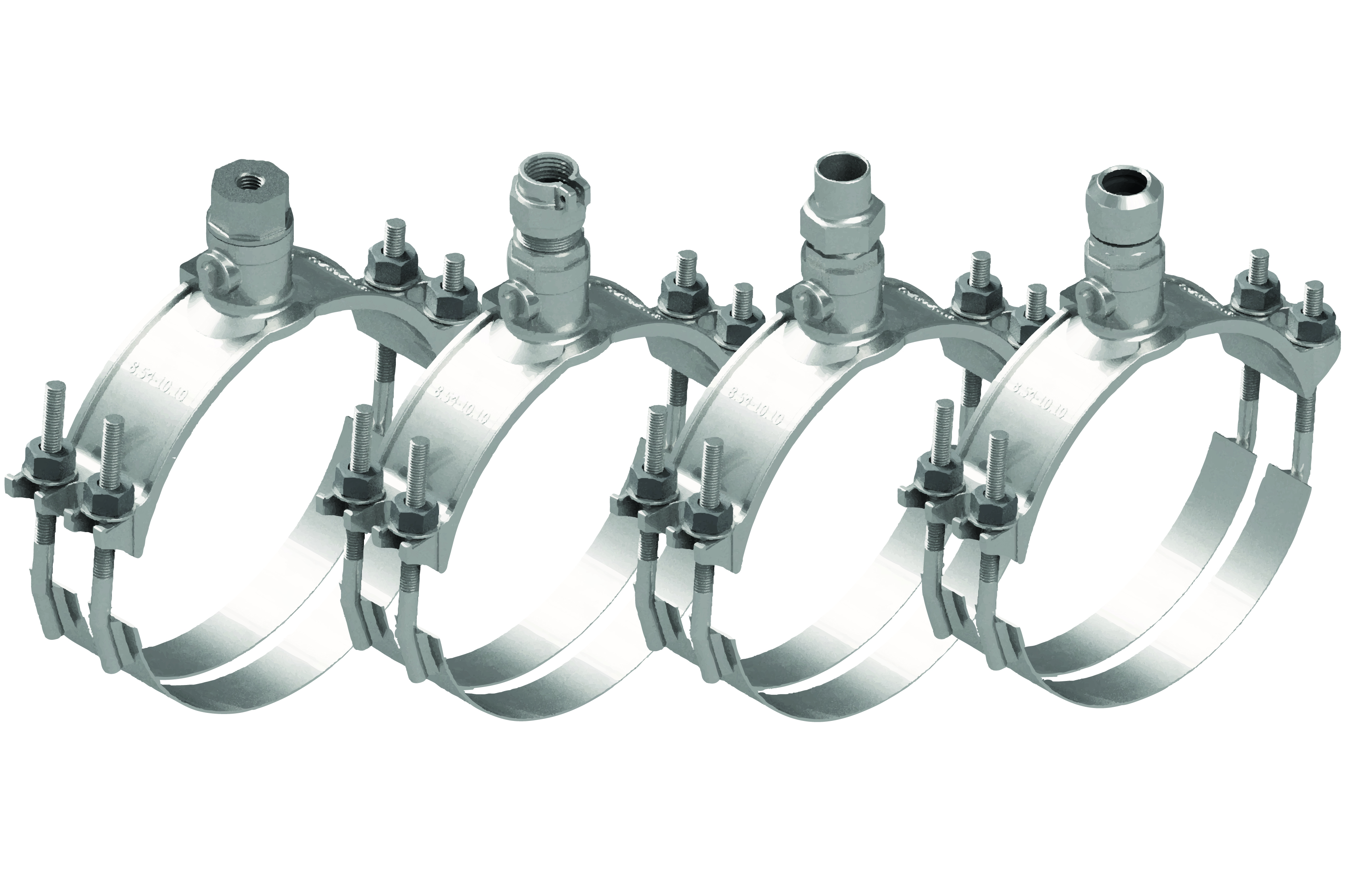

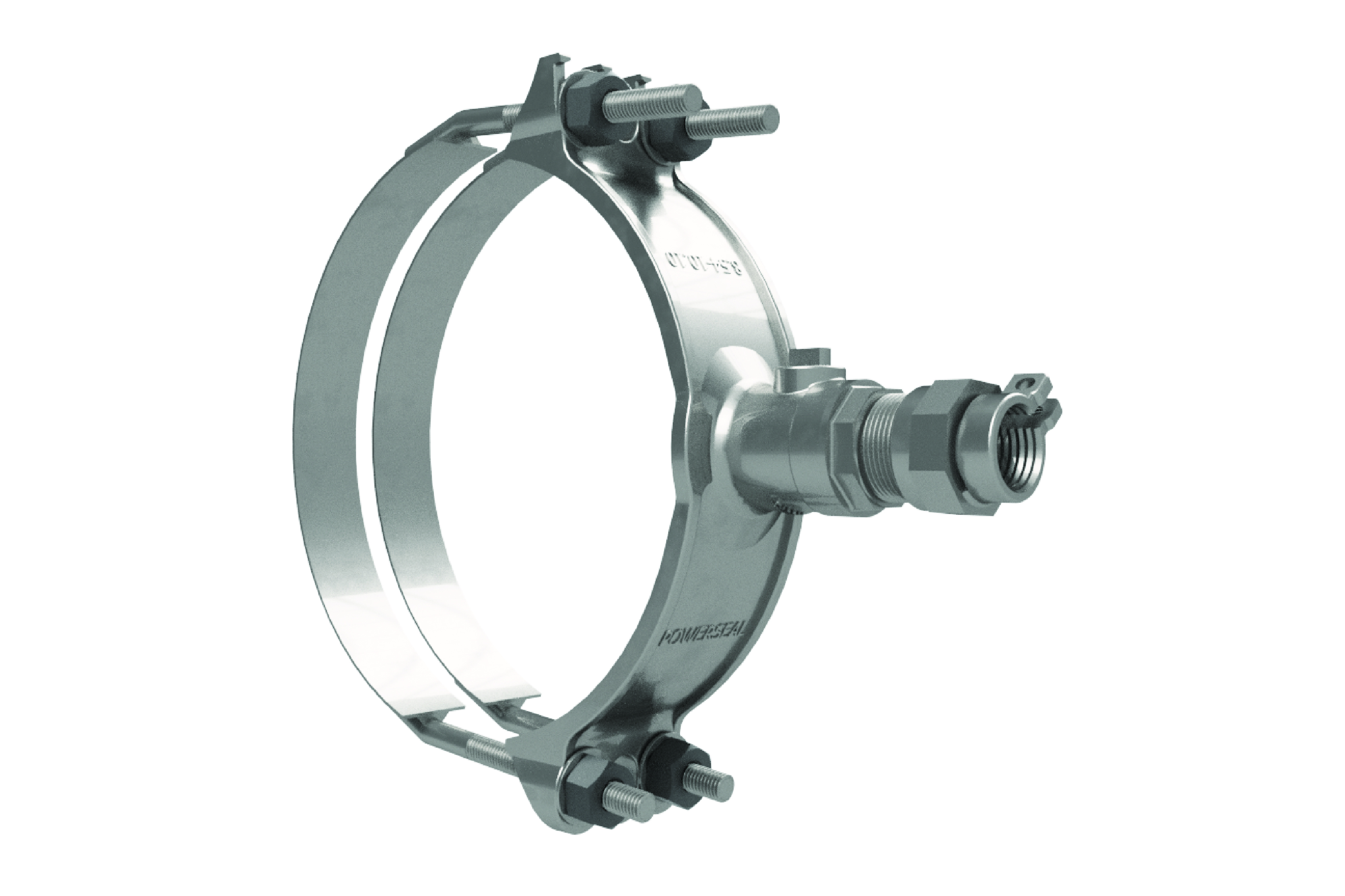

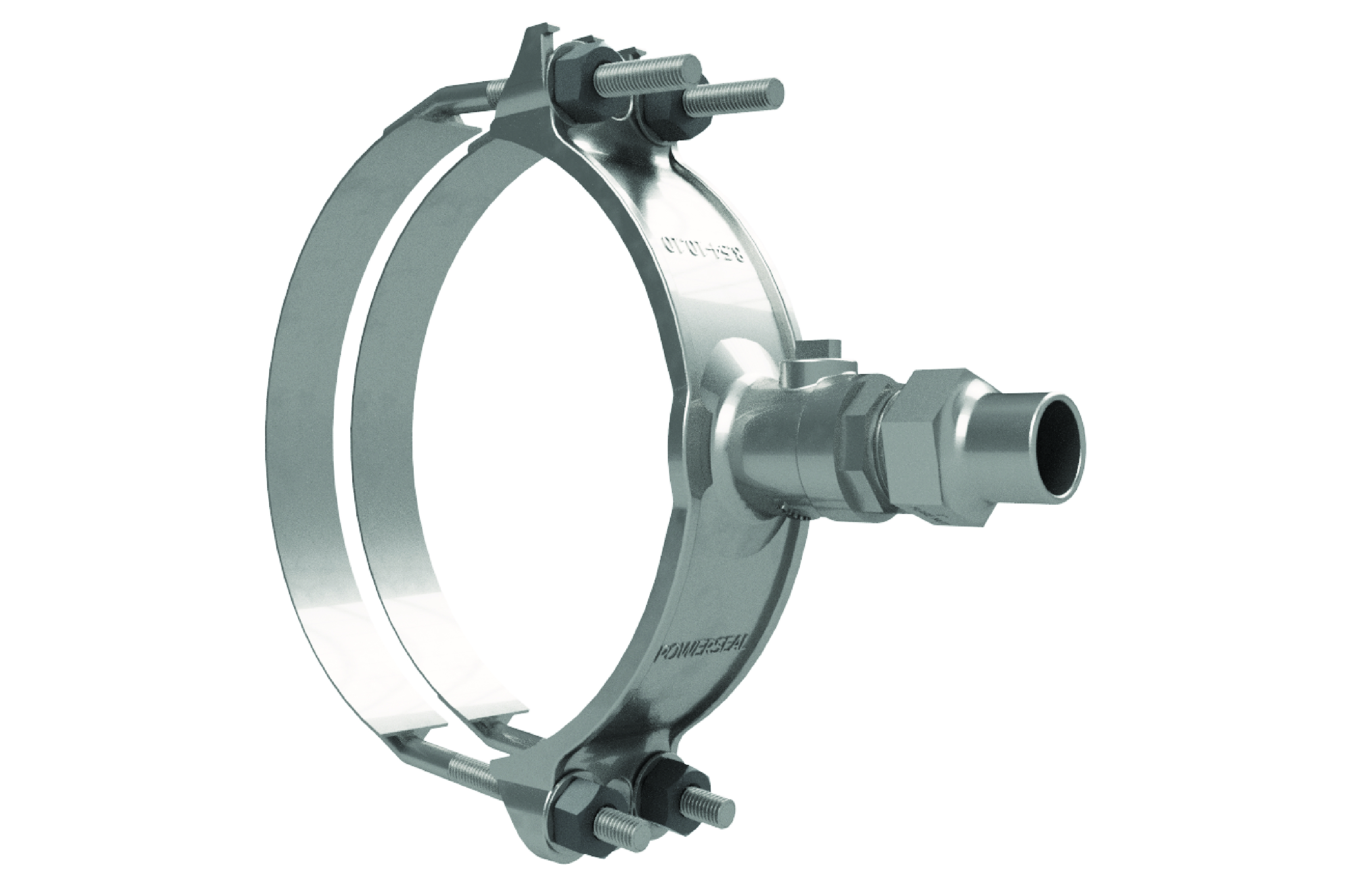

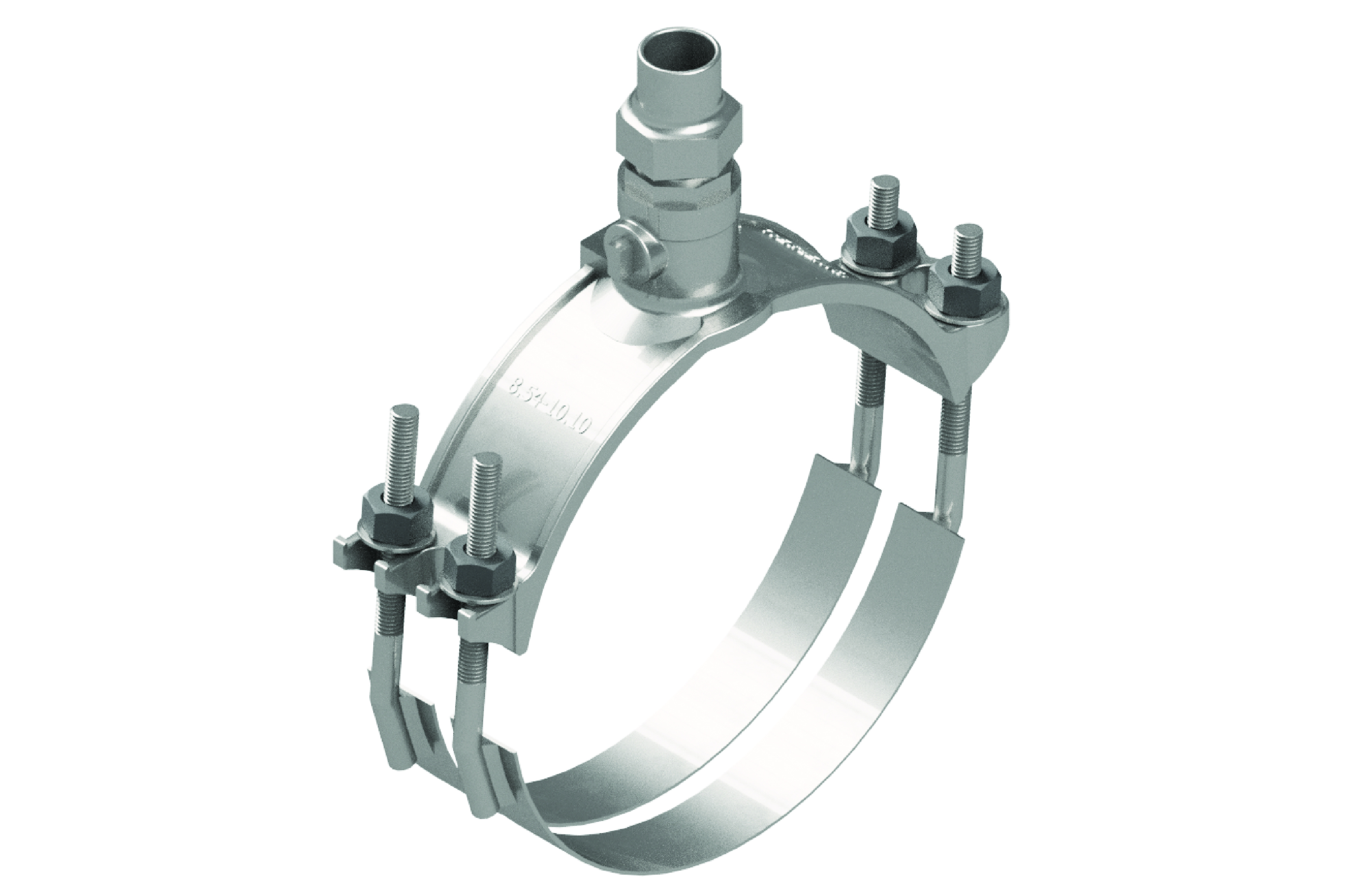

3450AS

STAINLESS SADDLECORP WITH STRAPS

Pat. No. 11,162,625
BODY CASTING:Stainless Steel 18-8 ASTM A743.
STRAPS:Type 304 (18-8) Stainless Steel per ASTM A240.
STUD BOLTS:Type 304 (18-8) Stainless Steel per ASTM A193.
NUTS:Type 304 (18-8) Stainless Steel per ASTM A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and/or galling.
GASKETS:NBR per ASTM D2000; Patented TwinSeal® dual o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal, with a temperature range of -40 °F to +248 °F.
