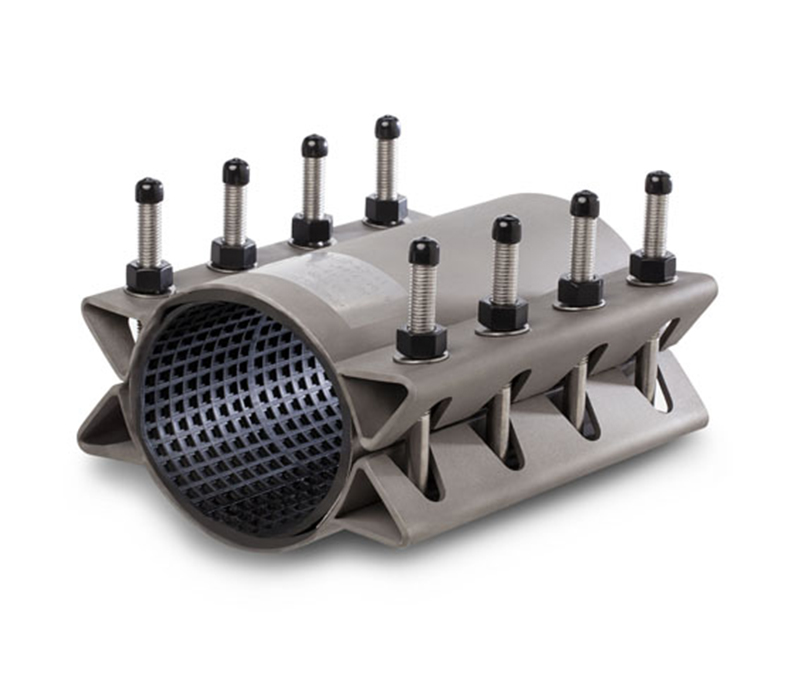

| Use: | To repair circumferential breaks, longitudinal ruptures, ground movements, holes, crack and other type of damage. |
| Panel: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Gasket: | SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available. |
| Armor Plate: | Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bonded to the gasket. |
| Bolts & Nuts: | Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling. |
| Lugs: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| End Ratings: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| More Information: | The rated working pressure of this clamp depends on many variables, i.e., pipe diameter, clamp length, bolt torque, extent and type of damage (beam load break/blow out), surge pressures, service conditions, back fill, and installation workmanship. Please call our sales engineers with the specifics of your repair situation. Custom sizes and ranges available. |
