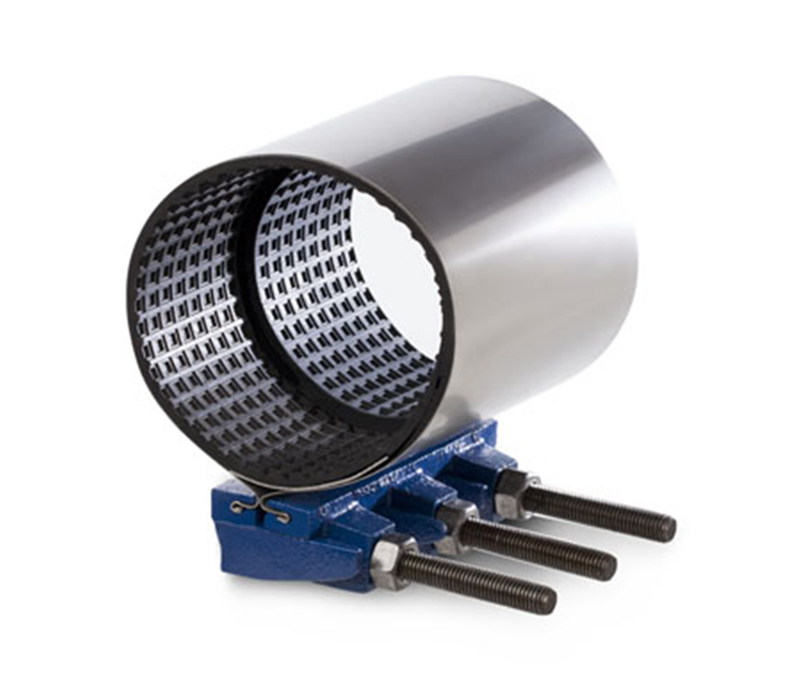

Use:To repair circumferential breaks, longitudinal ruptures, ground movements, holes, crack and other type of damage.
Panel:Type 304 (18-8) Stainless Steel per ASTM A240.
Gasket:NBR Check-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for oil, mild acids, water, salt media and most aliphatic hydrocarbon fluids with a temperature range of -40 °F to + 248 °F per ASTM D2000. Other materials available.
Armor Plate:Type 304 (18-8) Stainless Steel per ASTM A240, bonded to the gasket.
Bolts & Nuts:Low Alloy Steel per ASTM A325, ASTM A563, and AWWA C111. Optional Stainless Steel materials available with fusion bonded anti-galling coated nuts. Pipe OD Range = 0.40" (10mm).
Lugs:Ductile Iron per ASTM A536.
More Information:PowerSeal Collar Leak Repair Clamps provide a simple and permanent repair for leaking Solvent Weld PVC Bells and Collars as well as threaded Steel Pipe Collars. Since Collar Leak Clamps are designed to seal on both the outside diameter of the pipe and the leaking collar or bell, it is important that the proper clamp is ordered. These repair clamps are not recommended for leaking Push-On-Joint (gasketed) Bells.
