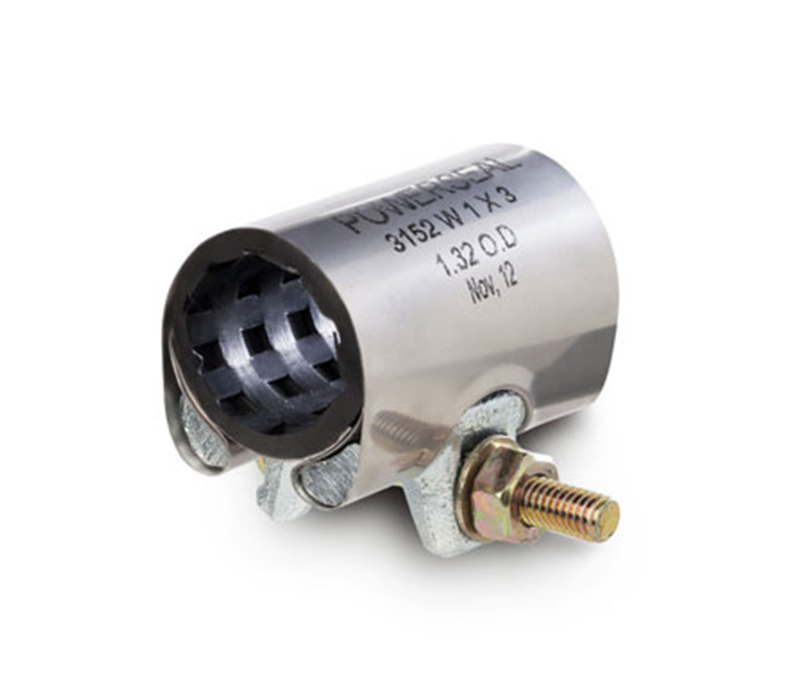

| Use: | To repair circumferential breaks, longitudinal ruptures, ground movements, holes, crack and other type of damage. |
| Panel: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Gasket: | Neoprene Sheet or Molded Waffle NBR design from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for oil, mild acids, water, salt media and most aliphatic hydrocarbon fluids with a temperature range of -40 °F to 248 °F. |
| Armor Plate: | Type 304 (18-8) Stainless Steel per ASTM A240, bonded to the gasket. |
| Bolts & Nuts: | Carbon Steel per ASTM A307, with electrogalvanized dichromate finish for added corrosion resistance. Optional Stainless Steel available. |
| Lugs: | Ductile Iron per ASTM A536 with electrogalvanized finish. |
