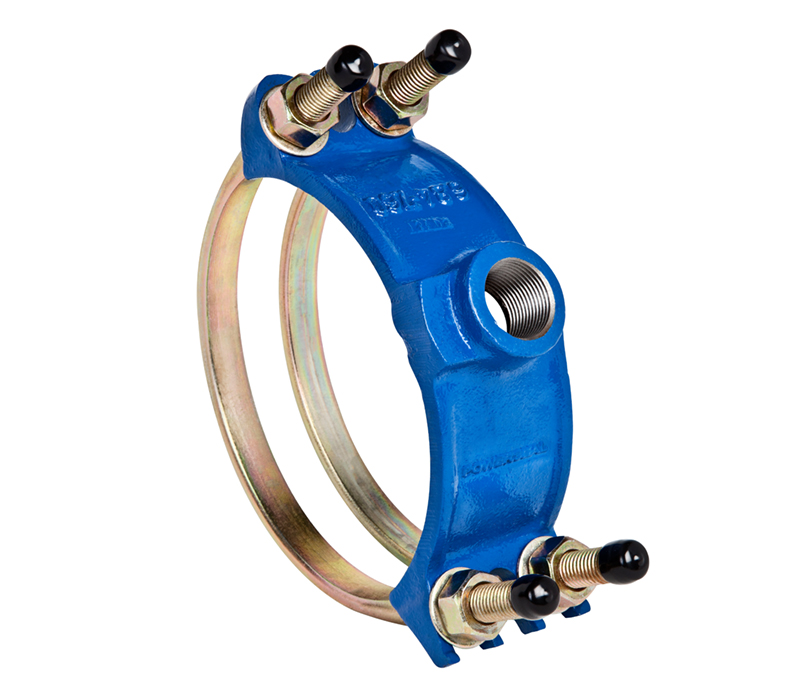

3413DI

DUCTILE IRON SADDLE WITH BALES

Use:Provide a dependable means of tapping pipe for branch connections and eliminates the need for direct taps reinforcing the critical connection.
Body:Casting Ductile Iron per ASTM A536.
Gasket:NBR per ASTM D2000; Patented TwinSeal® dual ring o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal, with a temprature range of -40 °F to +248 °F.
Bolts & Nuts:Carbon Steel, Grade A per ASTM A563.
Finish:Epoxy.
Bale:Carbon Steel per AISI 1080, with electrogalvanized dichromate finish for added corrosion resistance.
Manufacturers Recommendations:For PVC pipe applications, order saddle which has OD of pipe at the top of the range.
