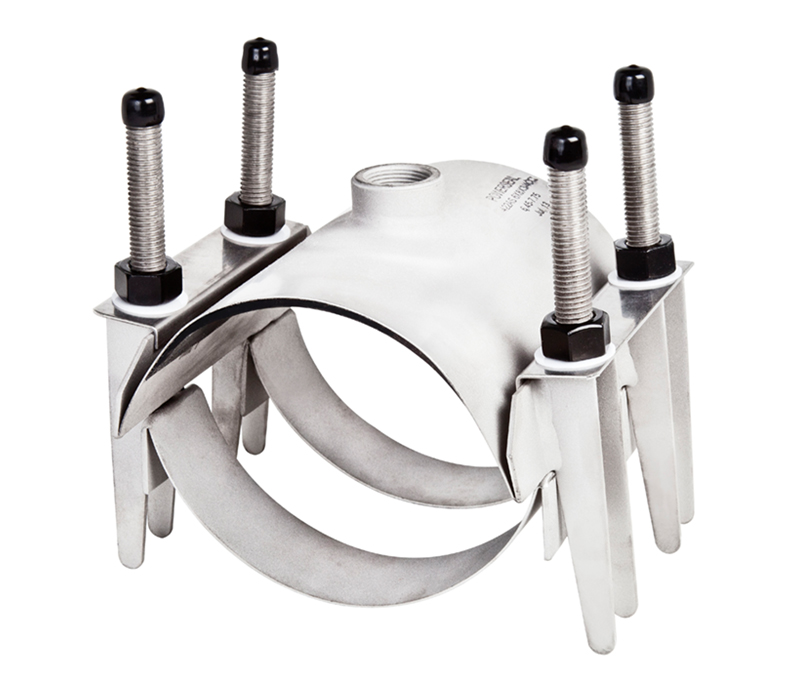

3422AS

DOUBLE STRAP ALL STAINLESS SADDLE "WIDE RANGE"

Use:Provide a dependable means of tapping pipe for branch connections and eliminates the need for direct taps reinforcing the critical connection.
Panel:Type 304 (18-8) Stainless Steel per ASTM A240.
Lifter Bar:Type 304 (18-8) Stainless Steel per ASTM A240.
Gasket:NBR per ASTM D2000; Patented TwinSeal® dual ring o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal, with a temprature range of -40 °F to +248 °F.
Bolts & Nuts:Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Lugs:Type 304 (18-8) Stainless Steel per ASTM A240.
Washers:Delrin per MIL-A50424.
Outlet:Type 304 (18-8) Stainless Steel per ASTM A276.
Straps:Width 2"
