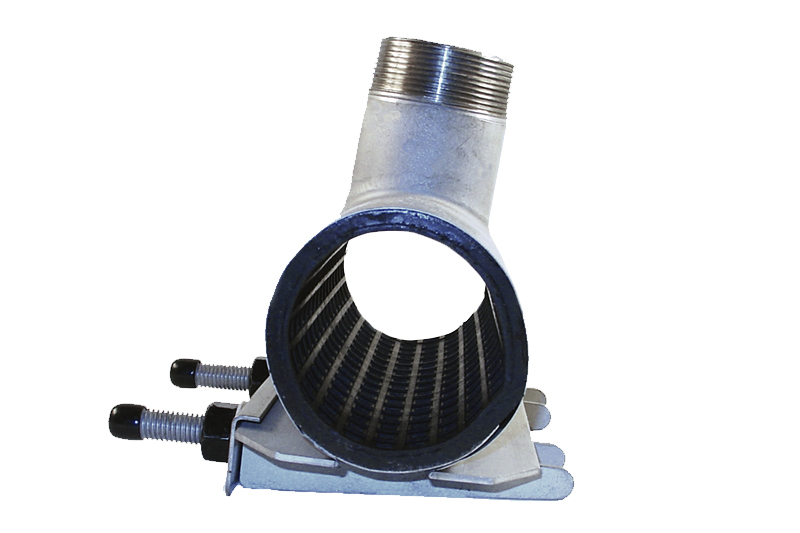

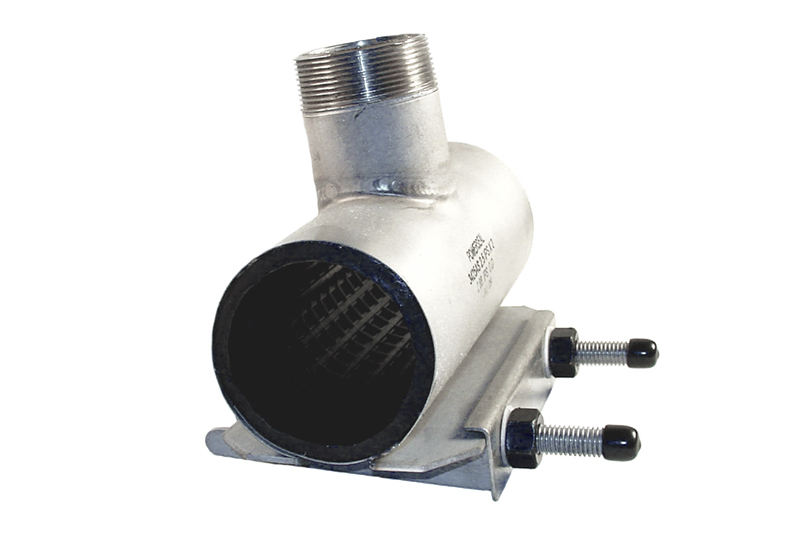

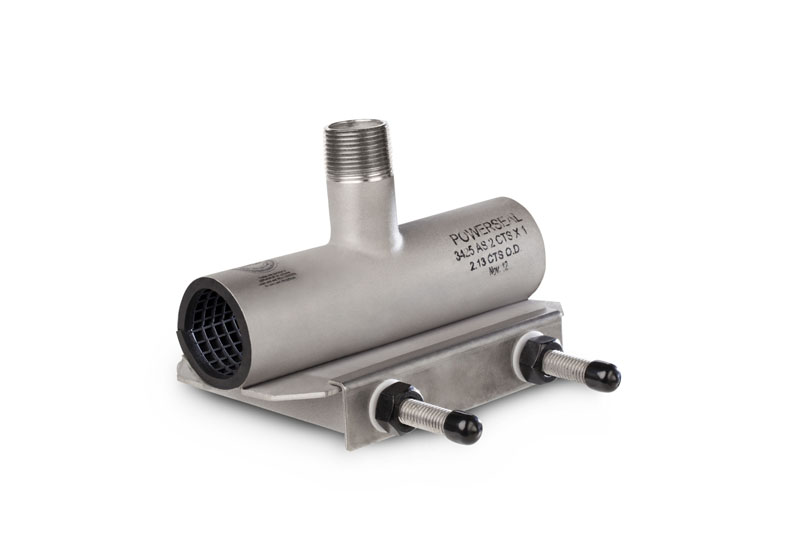

GeneralAvailable 3/4" to 8" diameters Size-on-Size.
Specification:Available from 3/4" dia x 3/4" MIP to 4.0" dia 12" w x 4.0" MIP.
Suitable for Water and Sewer (150 PSI).
All 304 Stainless Steel Construction.
Exact fit Full Circle Buna-N Waffle Gasket Design.
Optional: 316 SS, 1/2" NPT Outlet, WYE Outlets, Ductile Iron and SS Tube O.D.
Panel & Lifter Bar:Type 304 (18-8) Stainless Steel per ASTM A240
Gasket:3/16" thick gridded NBR per ASTM D2000 from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for mild acids, water and salt media with temperature range of -40° to +248° F.
Armor Plate:Type 304 (18-8) Stainless teel per ASTM A240.
Bolts & Nuts:Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Lugs:Type 304 (18-8) Stainless Steel per ASTM A240.
Washers:Derlin per ASTM D6778
Outlet:Type 304 (18-8) Stainless Steel per ASTM A312.
