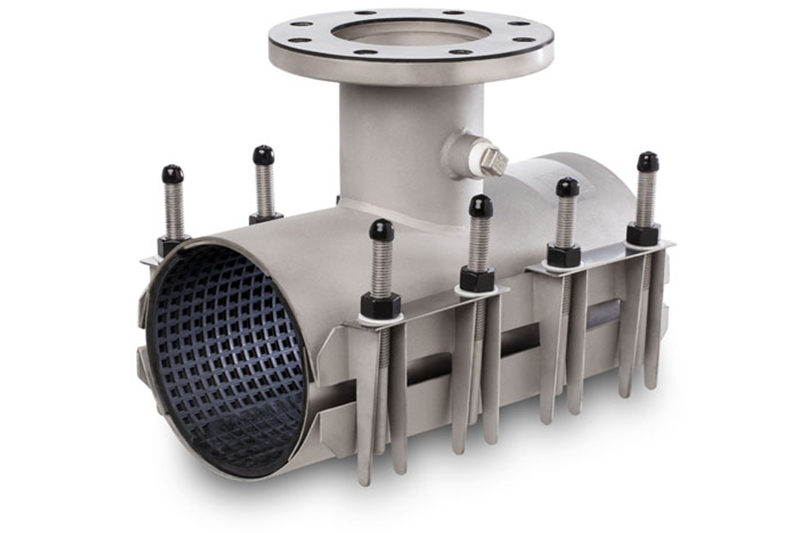

3480-AS/CS

3480 TAP SLEEVE W/FLANGE OUTLET

Flange:Type 304 (18-8) Stainless Steel or A36 Carbon Steel per AWWA C207.
Panel:Type 304 (18-8) Stainless Steel per ASTM A240.
Shell Gasket:SBR Check-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for mild acids, water and salt media with a temperature range of -40° to +200° F per ASTM D2000. SBR may be substitute. Other Materials available.
Branch Gasket:NBR per ASTM D200 with Hydro TwinSeal® dual o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal.
Bolts & Nuts:Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Washers:Delrin per ASTM D6778.
