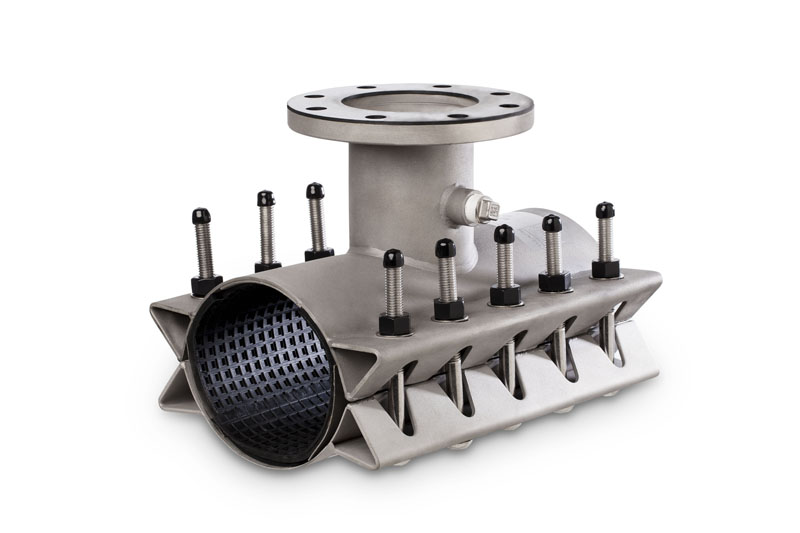

3490-AS/CS

FABRICATED STAINLESS STEEL

Flange:Type 304 (18-8) Stainless Steel per ASTM A240 and ANSI/AWWA C111 or Carbon Steel.
Panel:Type 304 (18-8) Stainless Steel per ASTM A240.
Shell Gasket:SBR Chek-O-Seal with multi O-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available.
Branch Gasket:NBR per ASTM D2000 with Hydro TwinSeal® dual o'ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal.
Bolts & Nuts:Type 304 (18-8) Stainless Steel per ASTM A193 and A194 for sleeves with Stainless Steel Flange and Low Alloy Steel Bolts and Nuts per ASTM A325 and ASTM A563 for sleeves with Carbon Steel Flange. NOTE: Stainless Steel hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Washers:Stainless Steel per ASTM A240
