Series(9900)

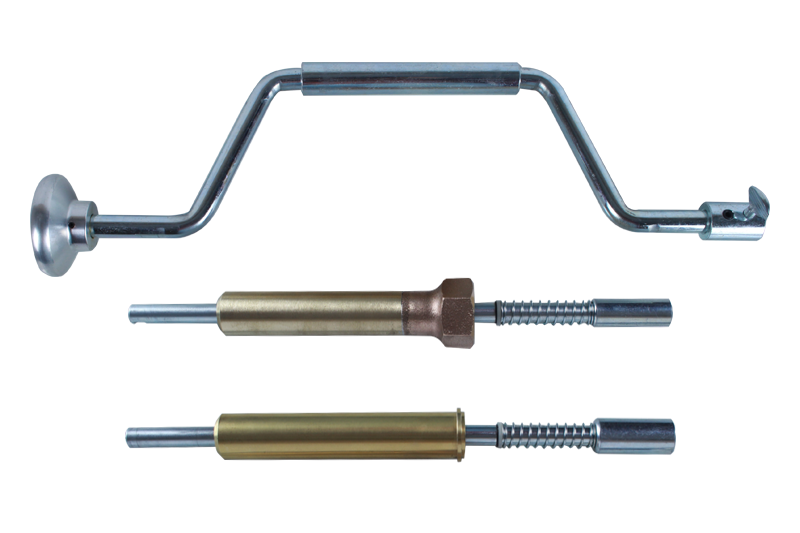

COMBO COMPLETE UNITS FOR C900 THICK WALL PLASTIC PIPE

Information:* 1 1/2" & 2" units are furnished with Female Iron Pipe (FIP) threaded Adapters unless otherwise specified.
Combination units consist of Drills, Drive * Mechanism, and type of Adapters specified.
* The Vega Drill Speed Handle Drive Mecha- nism is available only on 3/4" and 1" units.
* 3/4" and 1" Drive Mechanisms are inter- changeable.
* The 1 1/2" and 4" Drive Mechanisms are interchangeable.
* 6" & 8" Drive Mechanisms are interchan- geable.
* 3" thru 8" units are furnished with "Pack- Off" plate style adapters that fit on both flanged and MJ fittings.
* 3/4" and 1" C900 Vega Drills with Speed Handle, 3/4" Flare Adapter, and 1" Compression Adapter.
NOTE:* On the Model 9908R all size combination unit you must specify all of your adapter choices when ordering.
* For 3/4” and 1” sizes Female Iron Pipe (FIP) or Male Iron Pipe (MIP) thread Flare bushing available. These bushings work in conjunction with the standard flare adapter, converting them from a flared copper thread to iron pipe thread. See parts page in adapters section.
Use of power drive tools voids all warranties!
