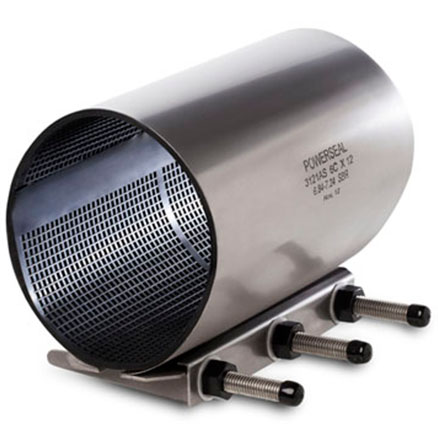

3121AS-LW

Available Sizes

Nominal Pipe Size	Pipe OD Range	Width	Part Number
Inches	Inches	Inches	Part Number

Nominal Pipe Size	Pipe OD Range	Width	Part Number
Inches	Inches	Inches	Part Number

Nominal Pipe Size		Pipe OD Range		Width		Part Number	List Price
Inches	MM	Inches	MM	Inches	MM	Part Number	List Price
2A	50	2.37-2.63	60-67	6	150	312102A060LW	$217.20
				8	200	312102A080LW	$302.20
				12	300	312102A120LW	$361.30
2B	50	2.62-2.87	67-73	6	150	312102B060LW	$217.20
				8	200	312102B080LW	$302.20
				12	300	312102B120LW	$361.30
2C	50	2.87-3.12	73-79	6	150	312102C060LW	$217.20
				8	200	312102C080LW	$302.20
				12	300	312102C120LW	$361.30
2X	50	X-RANGE	X-RANGE	6	150	312102X060LW	$217.20
				8	200	312102X080LW	$302.20
				12	300	312102X120LW	$361.30
3A	80	3.45-3.70	88-94	6	150	312103A060LW	$236.90
				8	200	312103A080LW	$327.40
				12	300	312103A120LW	$383.70
3B	80	3.75-4.00	95-102	6	150	312103B060LW	$236.90
		3.75-4.01	95-103	8	200	312103B080LW	$327.40
		3.75-4.02	95-104	12	300	312103B120LW	$383.70
3C	80	3.95-4.20	100-107	6	150	312103C060LW	$236.90
				8	200	312103C080LW	$327.40
				12	300	312103C120LW	$383.70
3X	80	X-RANGE	X-RANGE	6	150	312103X060LW	$236.90
				8	200	312103X080LW	$327.40
				12	300	312103X120LW	$383.70
4A	100	4.45 - 4.75	113-121	6	150	312104A060LW	$267.20
				8	200	312104A080LW	$364.10
				12	300	312104A120LW	$424.50
4B	100	4.74 - 5.14	120-131	6	150	312104B060LW	$267.20
				8	200	312104B080LW	$364.10
				12	300	312104B120LW	$424.50
4C	100	4.95-5.35	126-136	6	150	312104C060LW	$267.20
				8	200	312104C080LW	$364.10
				12	300	312104C120LW	$424.50
4D	100	5.20-5.60	132-142	6	150	312104D060LW	$267.20
				8	200	312104D080LW	$364.10
				12	300	312104D120LW	$424.50
4X	100	X-RANGE	X-RANGE	6	150	312104X060LW	$267.20
				8	200	312104X080LW	$364.10
				12	300	312104X120LW	$424.50
6A	150	5.95 - 6.35	151 - 161	6	150	312106A060LW	$319.80
				8	200	312106A080LW	$433.20
				12	300	312106A120LW	$510.60
6B	150	6.60 - 7.00	168-178	6	150	312106B060LW	$319.80
				8	200	312106B080LW	$433.20
				12	300	312106B120LW	$510.60
6C	150	6.84 - 7.24	174 - 184	6	150	312106C060LW	$319.80
				8	200	312106C080LW	$433.20
				12	300	312106C120LW	$510.60
6D	150	7.05 - 7.46	179 - 189	6	150	312106D060LW	$319.80
				8	200	312106D080LW	$433.20
				12	300	312106D120LW	$510.60
6E	150	7.40-7.80	188 - 198	6	150	312106E060LW	$319.80
				8	200	312106E080LW	$433.20
				12	300	312106E120LW	$510.60
6X	150	X-RANGE	X-RANGE	6	150	312106X060LW	$319.80
				8	200	312106X080LW	$433.20
				12	300	312106X120LW	$510.60
8A	200	7.95 - 8.35	202 - 212	6	150	312108A060LW	$374.70
				8	200	312108A080LW	$496.30
				12	300	312108A120LW	$601.40
8B	200	8.60 - 9.00	218-229	6	150	312108B060LW	$374.70
				8	200	312108B080LW	$496.30
				12	300	312108B120LW	$601.40
8C	200	9.00-9.40	229-239	6	150	312108C060LW	$374.70
				8	200	312108C080LW	$496.30
				12	300	312108C120LW	$601.40
8D	200	9.30-9.70	236-246	6	150	312108D060LW	$374.70
				8	200	312108D080LW	$496.30
				12	300	312108D120LW	$601.40
8X	200	X-RANGE	X-RANGE	6	150	312108X060LW	$374.70
				8	200	312108X080LW	$496.30
				12	300	312108X120LW	$601.40
