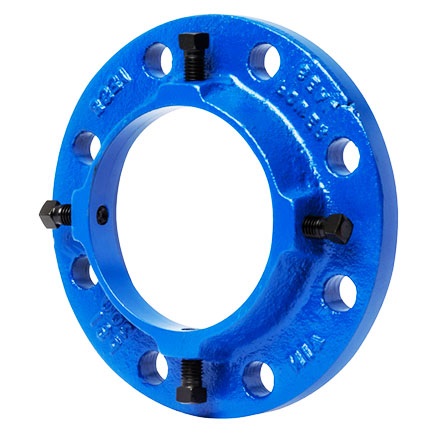

3531

Available Sizes

Flange Size (125# Flange)	Pipe OD Range	Flange OD Dim - A	Body Length Dim - B	Bolt Circle Dim - C	Part Number
Inches	Inches	Inches	Inches	Inches	Part Number

Flange Size (125# Flange)	Pipe OD Range	Flange OD Dim - A	Body Length Dim - B	Bolt Circle Dim - C	Part Number
Inches	Inches	Inches	Inches	Inches	Part Number

Flange Size (125# Flange)		Letter Code	Pipe Type	Pipe OD Range		Flange OD Dim - A		Body Length Dim - B		Bolt Circle Dim - C		Set Screws		Working Pressure	Part Number	List Price
Inches	MM	Letter Code	Pipe Type	Inches	MM	Inches	MM	Inches	MM	Inches	MM	Qty	Size	Working Pressure	Part Number	List Price
2	50	A	Steel	2.38	60	6	152	1.8	46	4.8	122	2	1/2	200	35310200000S	$69.00
2	50	B	Ductile Iron	2.5	64	6	152	1.8	46	4.8	122	2	1/2	200	35310200000C	$69.00
3	75	A	Steel	3.5	89	7.5	191	1.8	46	6	152	4	1/2	200	35310300000S	$83.90
3	75	B	Ductile Iron	3.8	101	7.5	191	1.8	46	6	152	4	1/2	200	35310300000C	$83.90
4	100	A	Steel	4.5	114	9	229	1.8	46	7.5	191	4	1/2	200	35310400000S	$113.50
4	100	B	Ductile Iron	4.8	122	9	229	1.8	46	7.5	191	4	1/2	200	35310400000C	$113.50
6	150	A	Steel	6.63	168	11	279	1.8	46	9.5	241	8	1/2	200	35310600000S	$140.30
6	150	B	Ductile Iron	6.9	101	11	279	1.8	46	9.5	241	8	1/2	200	35310600000C	$140.30
8	200	A	Steel	8.63	219	13.5	343	2.3	57	11.8	298	8	5/8	200	35310800000S	$166.90
8	200	B	Ductile Iron	9.05	230	13.5	343	2.3	57	11.8	298	8	5/8	200	35310800000C	$166.90
10	250	A	Steel	10.75	282	16	406	2.3	57	14.3	362	12	5/8	175	35311000000S	$304.80
10	250	B	Ductile Iron	11.1	101	16	406	2.3	57	14.3	362	12	5/8	175	35311000000C	$304.80
12	300	A	Steel	12.75	324	19	483	2.3	57	17	432	12	5/8	175	35311200000S	$357.10
12	300	B	Ductile Iron	13.2	335	19	483	2.3	57	17	432	12	5/8	175	35311200000C	$357.10

Flange Size (125# Flange)		Letter Code	Pipe Type	Pipe OD Range		Flange OD Dim - A		Body Length Dim - B		Bolt Circle Dim - C		Set Screws		Working Pressure	Part Number	List Price
Inches	MM	Letter Code	Pipe Type	Inches	MM	Inches	MM	Inches	MM	Inches	MM	Qty	Size	Working Pressure	Part Number	List Price

The end products are primarily used by fluid and gas distribution construction industries for the repair, maintenance, and new construction of potable water and sanitary sewer lines, agricultural irrigation lines, natural gas distribution lines, and low-pressure oil gathering lines.
