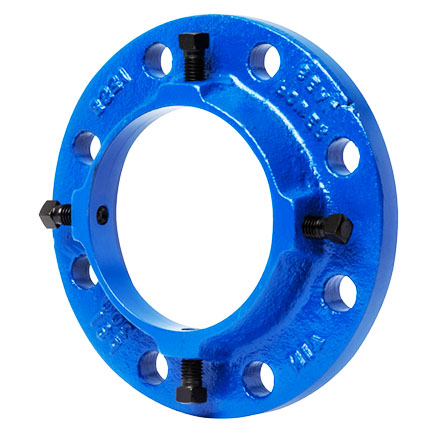

3532

Available Sizes

Flange Size (125# Flange)	Pipe OD Range	Flange OD Dim - A	Body Length Dim - B	Bolt Circle Dim - C	Part Number
Inches	Inches	Inches	Inches	Inches	Part Number

Flange Size (125# Flange)	Pipe OD Range	Flange OD Dim - A	Body Length Dim - B	Bolt Circle Dim - C	Part Number
Inches	Inches	Inches	Inches	Inches	Part Number

Flange Size (125# Flange)		Letter Code	Pipe Type	Pipe OD Range		Flange OD Dim - A		Body Length Dim - B		Bolt Circle Dim - C		Set Screws		Working Pressure	Part Number	List Price
Inches	MM	Letter Code	Pipe Type	Inches	MM	Inches	MM	Inches	MM	Inches	MM	Qty	Size	Working Pressure	Part Number	List Price
4	100	A	Steel	4.5	114	9	229	2.1	53.3	7.5	191	8	1/2	250	35320400000S	$168.50
4	100	B	Ductile Iron	4.8	122	9	229	2.1	53.3	7.5	191	8	1/2	250	35320400000C	$168.50
6	150	A	Steel	6.63	168	11	279	2.1	53.3	9.5	241	8	5/8	250	35320600000S	$181.40
6	150	B	Ductile Iron	6.9	175	11	279	2.1	53.3	9.5	241	8	5/8	250	35320600000C	$181.40
8	200	A	Steel	8.63	219	13.5	343	2.1	53.3	11.8	298	8	5/8	250	35320800000S	$212.10
8	200	B	Ductile Iron	9.05	230	13.5	343	2.1	53.3	11.8	298	8	5/8	250	35320800000C	$212.10
10	250	A	Steel	10.75	273	16	406	2.1	53.3	14.3	363	12	5/8	250	35321000000S	$454.80
10	250	B	Ductile Iron	11.1	282	16	406	2.1	53.3	14.3	363	12	5/8	250	35321000000C	$454.80
12	300	A	Steel	12.75	324	19	483	2.2	55.9	17	432	12	5/8	250	35321200000S	$530.00
12	300	B	Ductile Iron	13.2	335	19	483	2.2	55.9	17	432	12	5/8	250	35321200000C	$530.00
14	350	A	Steel	14	356	21	533	2.6	66	18.8	478	12	5/8	150	35321400000S	$624.70
14	350	B	Ductile Iron	15.3	389	21	533	2.6	66	18.8	478	12	5/8	150	35321400000C	$624.70
16	400	A	Steel	16	406	23.5	597	2.7	68.6	21.3	541	16	5/8	150	35321600000S	$830.60
16	400	B	Ductile Iron	17.4	442	23.5	597	2.7	68.6	21.3	541	16	5/8	150	35321600000C	$830.60
18	450	A	Steel	18	457	25	635	2.8	71.1	22.8	579	16	3/4	150	35321800000S	$1107.60
18	450	B	Ductile Iron	19.5	495	25	635	2.8	71.1	22.8	579	16	3/4	150	35321800000C	$1107.60
20	500	A	Steel	20	508	27.5	699	2.9	73.7	25	635	20	3/4	150	35322000000S	$1476.90
20	500	B	Ductile Iron	21.6	549	27.5	699	2.9	73.7	25	635	20	3/4	150	35322000000C	$1476.90
24	600	A	Steel	24	610	32	813	3.1	78.7	29.5	749	20	3/4	150	35322400000S	$1969.20
24	600	B	Ductile Iron	25.8	655	32	813	3.1	78.7	29.5	749	20	3/4	150	35322400000C	$1969.20
30	750	A	Steel	30	762	38.8	986	4	101.6	36	914	28	3/4	100	35323000000S	$2625.50
30	750	B	Ductile Iron	32	813	38.8	986	4	101.6	36	914	28	3/4	100	35323000000C	$2625.50
36	900	A	Steel	36	914	46	1168	4.5	114.3	42.3	1074	32	3/4	100	35323600000S	$4635.20
36	900	B	Ductile Iron	38.3	973	46	1168	4.5	114.3	42.3	1074	32	3/4	100	35323600000C	$4635.20

Flange Size (125# Flange)		Letter Code	Pipe Type	Pipe OD Range		Flange OD Dim - A		Body Length Dim - B		Bolt Circle Dim - C		Set Screws		Working Pressure	Part Number	List Price
Inches	MM	Letter Code	Pipe Type	Inches	MM	Inches	MM	Inches	MM	Inches	MM	Qty	Size	Working Pressure	Part Number	List Price
