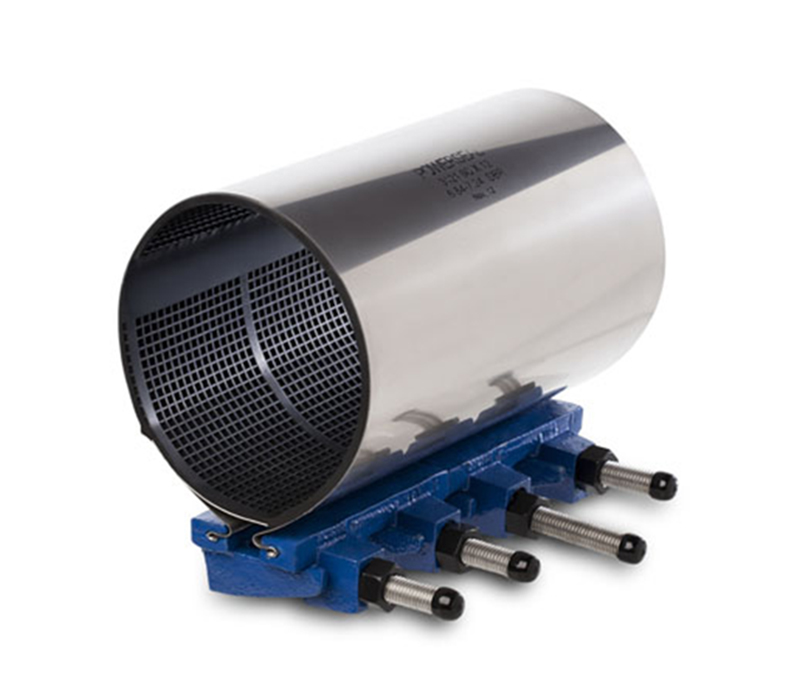

| Use: | To repair circumferential breaks, longitudinal ruptures caused by ground movements, small holes and cracks. |
| Panel: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Gasket: | SBR Check-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for mild acids, water and salt media with a tempature range of -40 °F to +200 °F per ASTM D2000. Other Materials available. |
| Armor Plate: | Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bonded to the gasket. |
| Bolts & Nuts: | Low Alloy Steel per ASTM A325, ASTM A563, and AWWA C111. Optional Stainless Steel materials available with fusion bonded anti-galling coated nuts. |
| Lugs: | Ductile Iron per ASTM A536. |
| Manufacturers Recommendations: | - Clamp width should equal or exceed pipe diameter for higher working pressures. -Repair Clamps are not recommended for use in joining plain end pressure pipe. -Other sizes and widths not listed are readily available price on request. |
