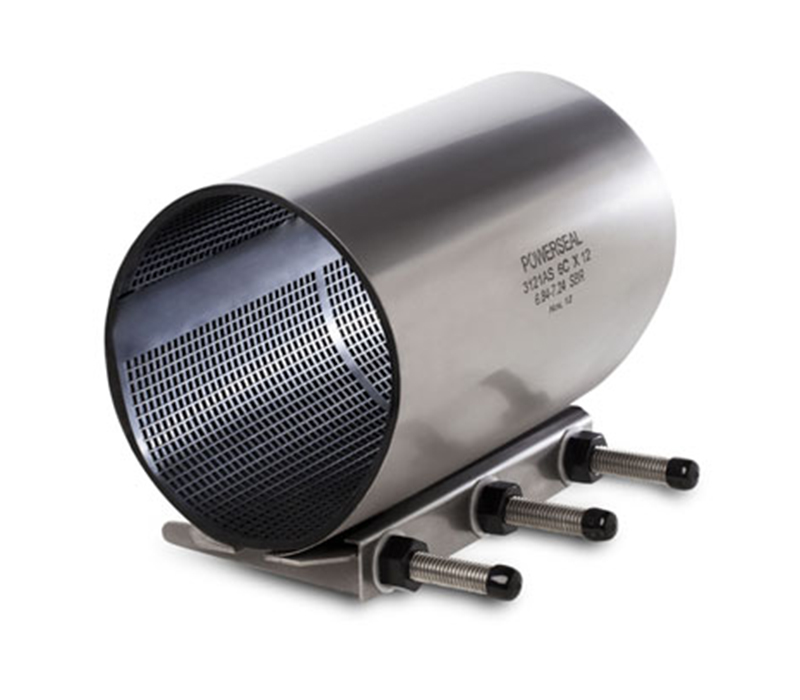

| USE: | To repair circumferential breaks, longitudinal ruptures caused by ground movements, small holes and cracks. |
| PANEL: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| GASKET: | SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available. |
| ARMOR PLATE: | Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bonded to the gasket. |
| BOLTS & NUTS: | Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling. |
| LUGS: | Type 304 (18-8) Stainless Steel per ASTM A240 |
| WASHERS | Delrin per MIL-A50424 |
| MANUFACTURES RECOMMENDATIONS | Clamp width should equal or exceed pipe diameter for higher working pressures. |
| | Repair Clamps are not recommended for use in joining plain end pressure pipe. |
| | Other sizes and widths not listed are readily available price on request. |
