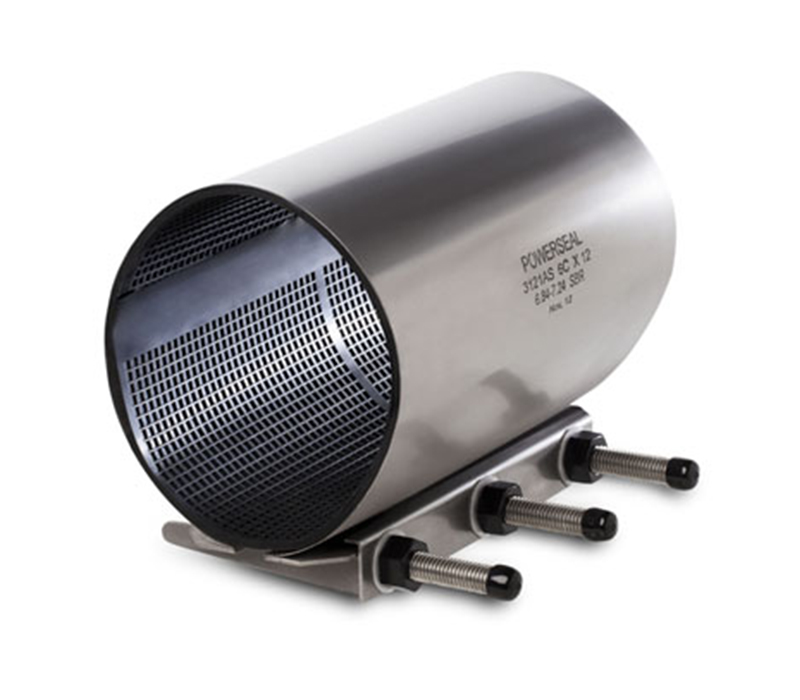

| Use: | To repair circumferential breaks, longitudinal ruptures, ground movements, holes, crack and other type of damage. |
| Panel: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Gasket: | SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available. |
| Armor Plate: | Type 304 (18-8) Stainless Steel perASTM A240, recessed and bonded to the gasket. |
| Bolts & Nuts: | Type 304 (18-8) Stainless Steel perASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling. |
| Lugs: | Type 304 (18-8) Stainless Steel per ASTM A240 |
| Washers: | Stainless Steel per ASTM A240, type 304. Special spring type. |
| Manufacturers Recommendations: | * Clamp width should equal or exceed pipe diameter for higher working pressures. |
| | * Repair Clamps are not recommended for use in joining plain end pressure pipe. |
| | * Other sizes and widths not listed are readily available price on request. |
