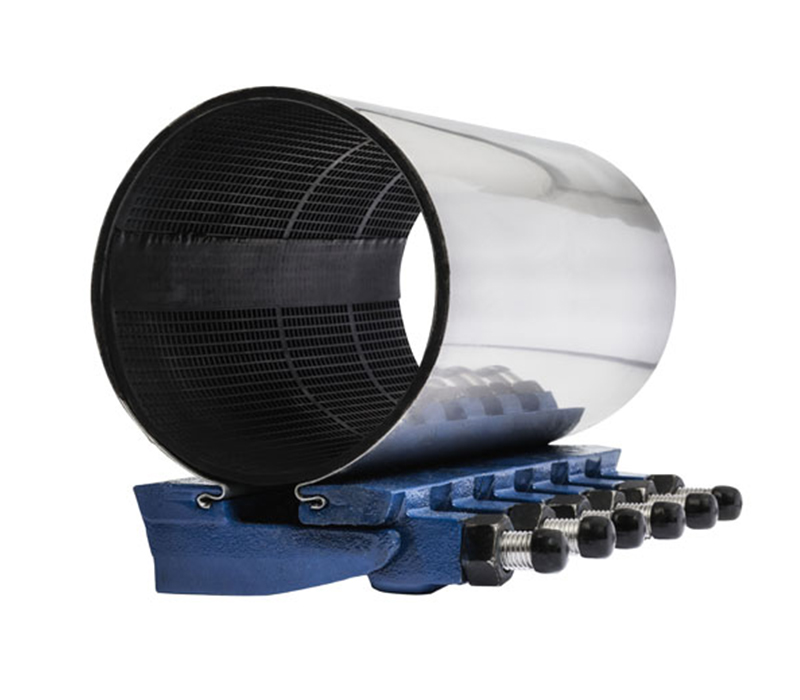

3121HD

SINGLE PANEL HIGH PRESSURE HEAVY DUTY CLAMP

PANEL:Type 304 (18-8) Stainless Steel per ASTM A240.
GASKET:SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characteristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F, per ASTM D2000 . Other materials available.
ARMOR PLATE:Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bonded to the gasket.
BOLTS & NUTS:3/4" diameter low Alloy Steel per ASTM, A325, ASTM A563, and AWWA C111. Optional SS available.
LUGS:Ductile Iron per ASTM A536.
MEETS AWWA C230
NOTE:EXACT PIPE OD MUST BE PROVIDED AT TIME OF ORDER.
