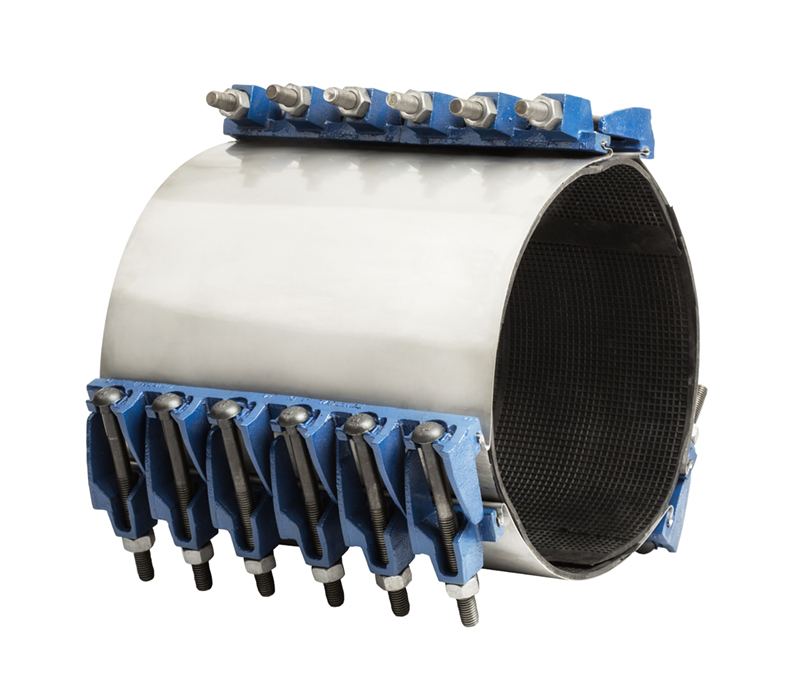

| USE: | To repair circumferential breaks, longitudinal ruptures caused by ground movements, small holes and cracks. |
| PANEL: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| GASKET: | SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available. |
| ARMOR PLATE: | Type 304 (18-8) Stainless Steel per ASTM A240, recessed and bon- ded to the gasket. |
| BOLTS & NUTS: | Low Alloy Steel per ASTM A325, ASTM A563, and AWWA C111. Optional Stainless Steel materials available with fusion bonded anti-galling coated nuts. |
| LUGS: | Ductile Iron per ASTM A536. |
| | MEETS AWWA C230 |
