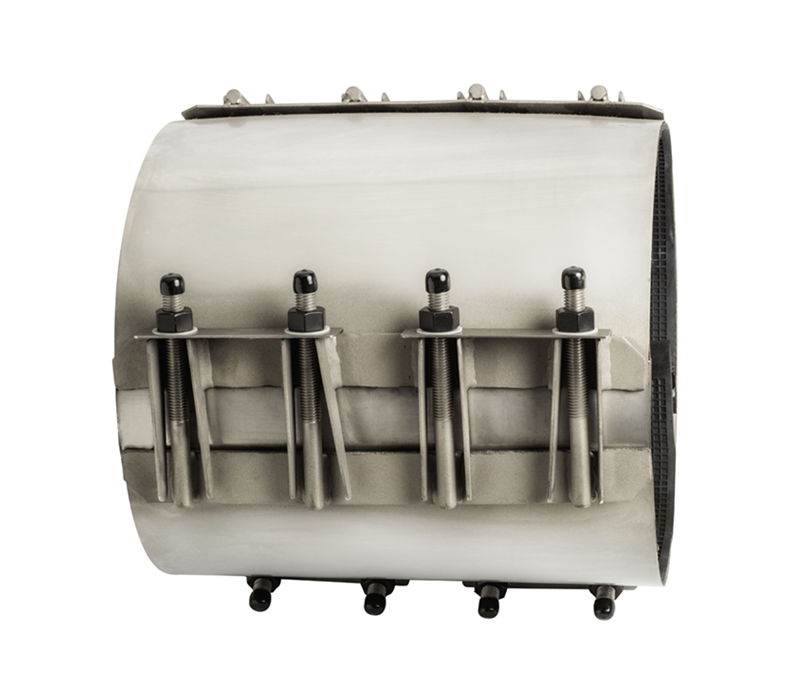

Use:To repair circumferential breaks, longitudinal ruptures caused by ground movements, small holes and cracks.
Panel:Type 304 (18-8) Stainless Steel per ASTM A240.
Lifter Bar:Type 304 (18-8) Stainless Steel per ASTM A240.
Gasket:SBR Chek-O-Seal with multi o-ring sealing ribs from 100% new rubber to ensure performance under varying pressures with superior storage characte- ristics. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F per ASTM D2000. Other materials available.
Armor Plate:Type 304 (18-8) Stainless Steel per ASTM A240. recessed and bonded to the gasket.
Bolts & Nuts:Type 304 (18-8) Stainless Steel per ASTM A193 and A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Lugs:304 (18-8) Stainless Steel per ASTM A240.
Washers:Delrin per MIL-A50424.
Manufacturers Recommendations:- Clamp width should equal or exceed pipe diameter for higher working pressures. - Repair Clamps are not recommended for use in joining plain end pressure pipe. - Other sizes and widths not listed are readily available price on request.
