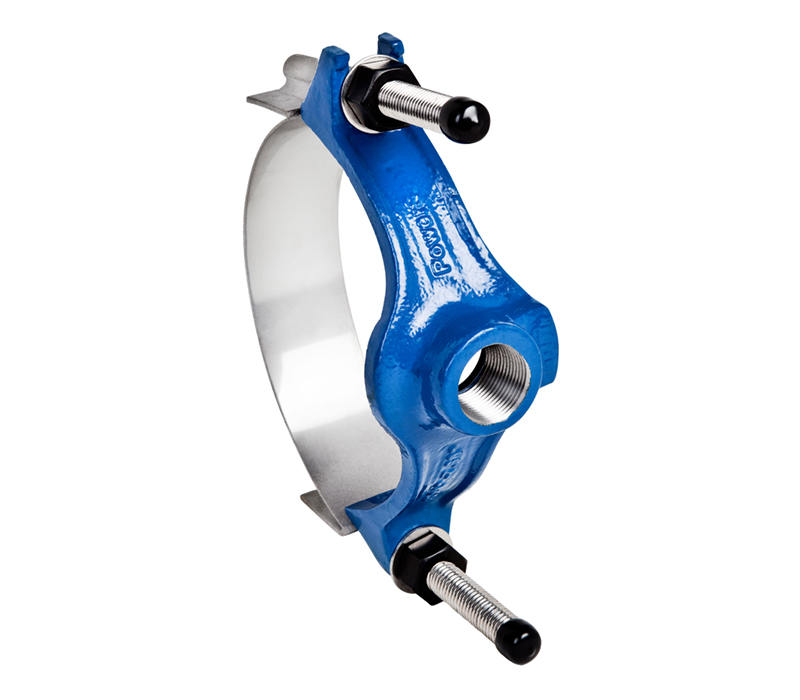

| Use: | Provide a dependable means of tapping pipe for branch connections and eliminates the need for direct taps reinforcing the critical connection. |
| Body Casting: | Ductile Iron per ASTM A536. |
| Gasket: | NBR per ASTM D2000; Patented TwinSeal® dual ring o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal, with a temprature range of -40 °F to +248 °F. |
| Nuts: | Type 304 (18-8) Stainless Steel per ASTM A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling. |
| Finish: | Epoxy. |
| Strap: | Type 304 (18-8) Stainless Steel per ASTM A240. |
| Manufacturers Recommendations: | For PVC pipe applications, order saddle which has OD of pipe at the top of the range. |
