3532

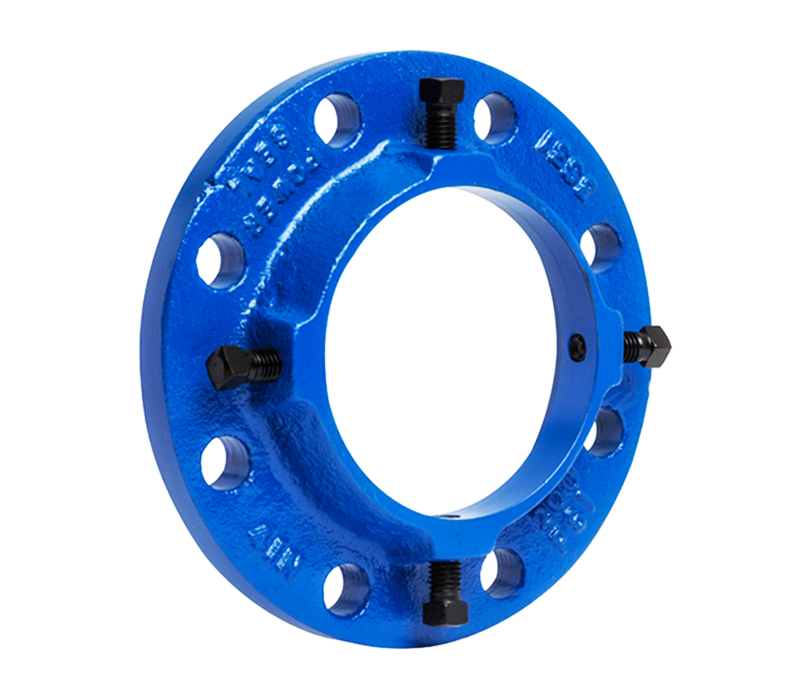

INSTA-FLANGE ADAPTER (HEAVY DUTY)

Body Casting:Ductile Iron per ASTM A536.
Gasket:SBR Mechanical Joint design per AWWA C11. Suitable for mild acids, water and salt media with a temperature range of -40 °F to +200 °F.
Bolts & Nuts:Set Screws AISI 4140 Heat Treated Steel.
Flange:ANSI B16.1 125# / ANSI B16.5 150#.
Finish:Epoxy.
