3417DI-PE

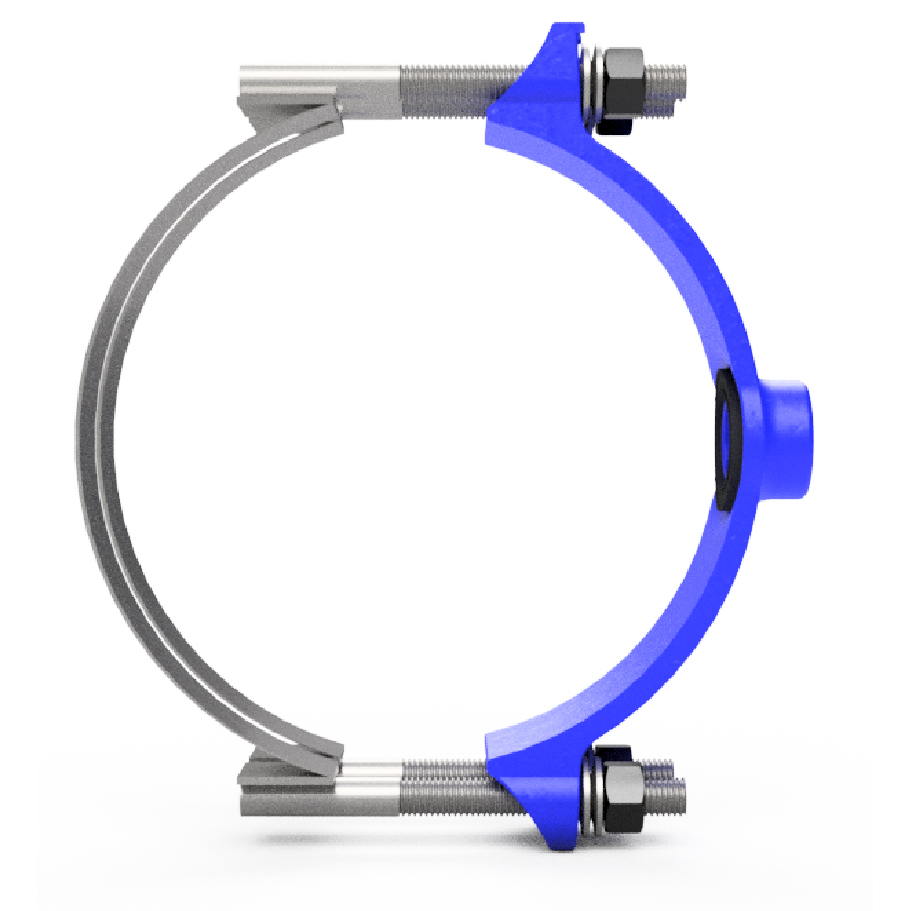

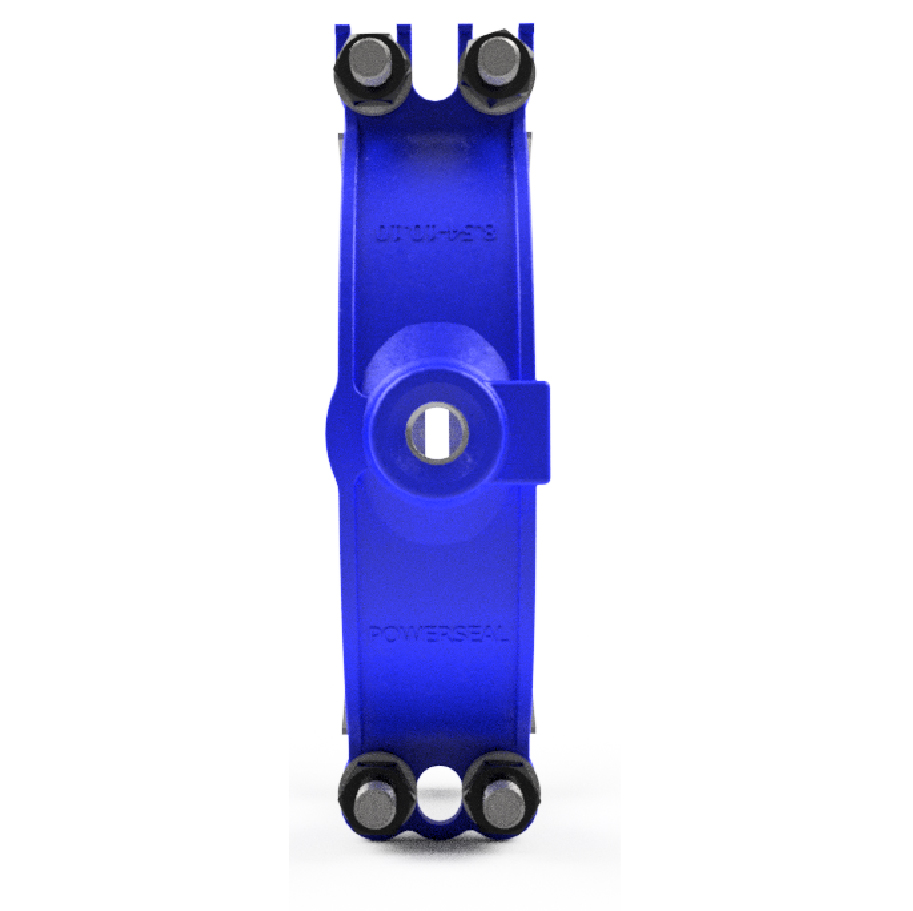

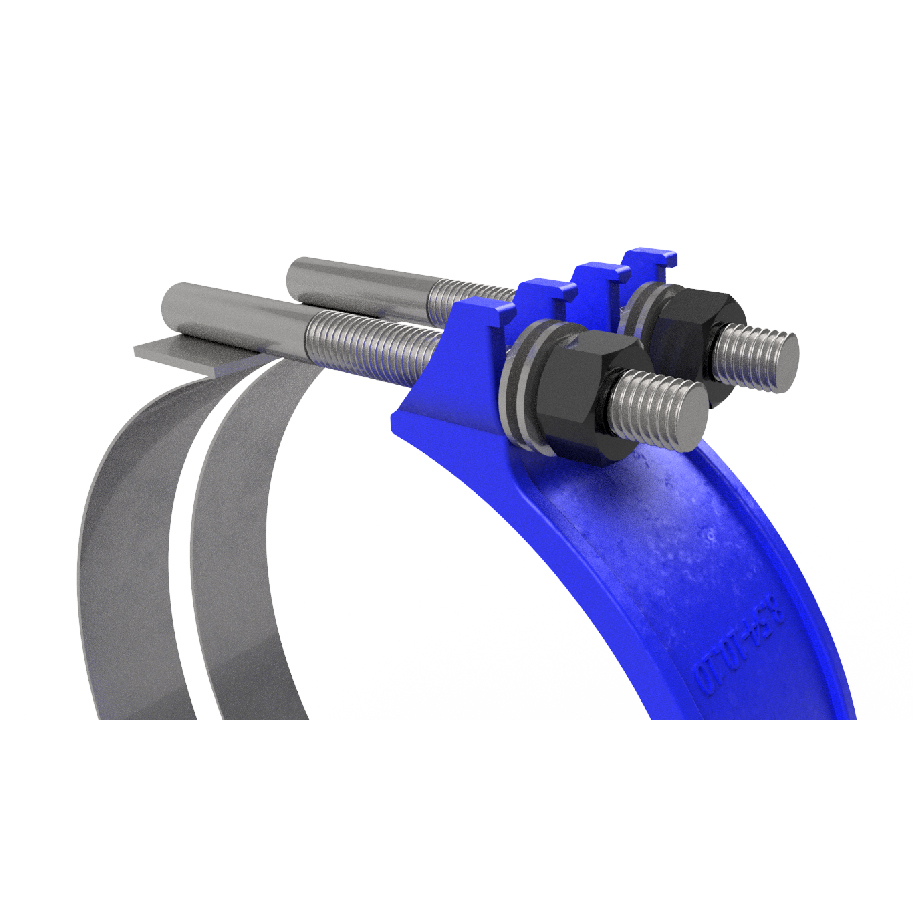

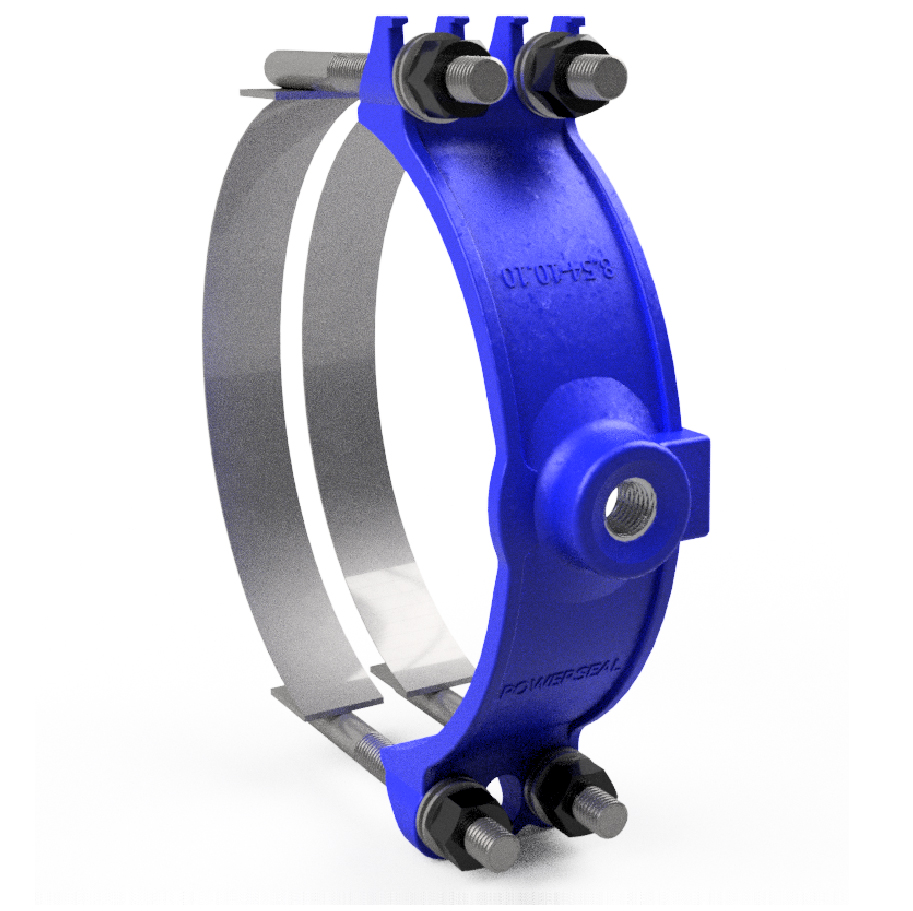

Ductile Iron Saddle With Straps

Use: Provide a dependable means of tapping pipe for branch connections and eliminates the need for direct taps reinforcing the critical connection.
Body:Casting Ductile Iron per ASTM A536.
Gasket:NBR per ASTM D2000; Patented TwinSeal® dual ring o-ring design incorporating both hydrostatic and mechanical forces to affect a dynamic seal, with a temprature range of -40 °F to +248 °F.
Nuts:Type 304 (18-8) Stainless Steel per ASTM A194. NOTE: Hex nuts are furnished with fusion bonded coating to prevent seizing and galling.
Stud Bolts:Type 304 (18-8) Stainless Steel per ASTM A193.
Finish:Epoxy.
Straps:Type 304 (18-8) Stainless Steel per ASTM A240.
